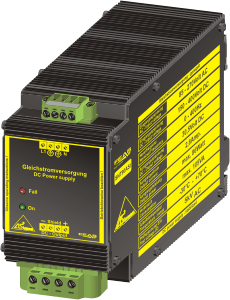

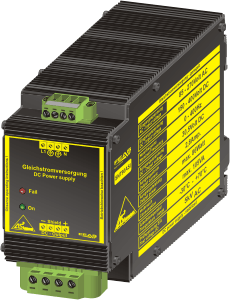

Switch mode power supply SNT90ASi

FEAS article number 5861248

Price per unit:
€249.50 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €249.50 * 0 %
From 3 €244.51 * 2 %
From 5 €237.02 * 5 %
From 10 €232.04 * 7 %
From 20 €227.05 * 9 %
From 50 €224.55 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
The certified ASi interface of the SNT90ASi series facilitates cooperation with components... more
Product information "Switch mode power supply SNT90ASi"
The certified ASi interface of the SNT90ASi series facilitates cooperation with components from other manufacturers. Tests or certification ensure that devices from different manufacturers work together. The switch mode power supplies  SNT90ASi are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
  • Switch-mode controller ASi certified
  • Boost 120%
  • Output separated according to VDE 0551
  • Overload- and open circuit protected
  • Extra low safety potential PELV (EN 60204), SELV (EN 62368)
  • Short circuit proof
  • Operating status shown by LED
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL, CSA
Technical data more
Technical data "Switch mode power supply SNT90ASi"
Input voltage (VAC): 85 - 270 VAC (0-400 Hz)
Input voltage (VDC): 120 - 400 VDC
Output voltage: 30.5 VDC
Output current: 2.8 A
Power: 86.0 W
Efficiency: 89%
Residual ripple: < 50 mVSS (10-500kHz) / < 100 mVSS (0-10kHz)
Operating temperature range: -30°C / +70°C
Dimensions (WxHxD): 64.0 x 99.0 x 118.0 mm
Weight: 1.25 kg
Mounting: On rails acc. to DIN 46277, wall mounting possible
Downloads "Switch mode power supply SNT90ASi"

Product specification SNT90ASi (239,0 KB)

Further information about power supply SNT90ASi

Öffnen/Herunterladen

Data sheet SNT90ASi (486,3 KB)

Technical data for power supply SNT90ASi

Öffnen/Herunterladen

Manual SNT90ASi / SNT92ASi (239,1 KB)

Operating instructions for power supplies of the series SNT90ASi / SNT92ASi

Öffnen/Herunterladen

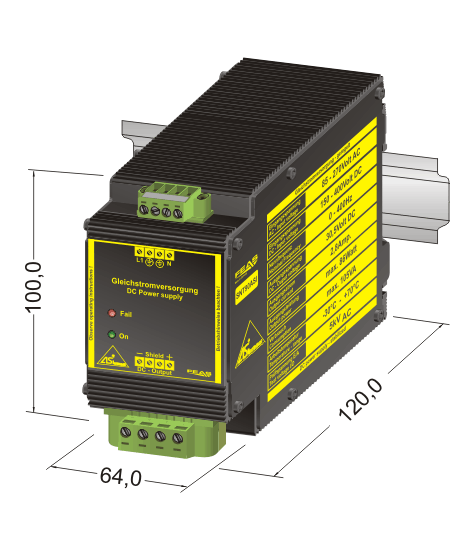

Dimensions "Switch mode power supply SNT90ASi"
Dimensions Switch mode power supply SNT90ASi
