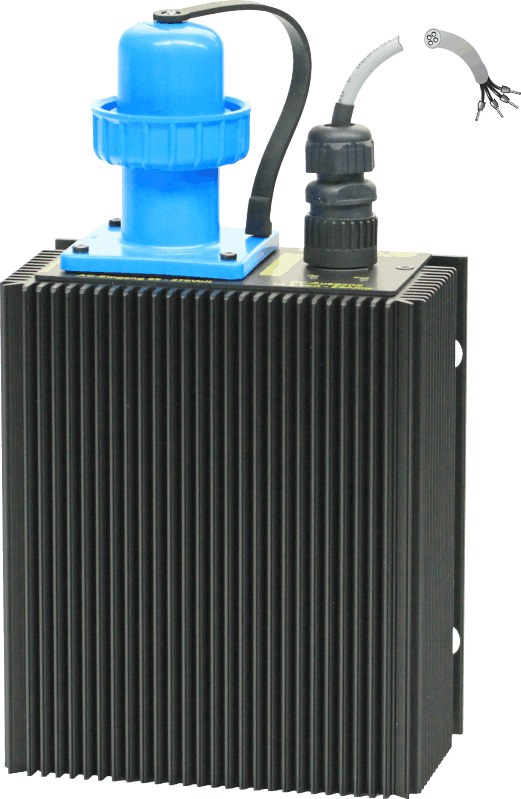

Charger SNT12512-BL for mobile applications

FEAS article number 583515

Price per unit:
€770.00 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €770.00 * 0 %
From 3 €754.60 * 2 %
From 5 €731.50 * 5 %
From 10 €716.10 * 7 %
From 20 €700.70 * 9 %
From 50 €693.00 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available within 10 days
With the SNT12512-BL batterie charger you will find a powerful and robust power supply unit... more
Product information "Charger SNT12512-BL for mobile applications"
With the SNT12512-BL batterie charger you will find a powerful and robust power supply unit that is suitable for charging and maintaining the charge of batteries, for example on tractors and construction machines. The SNT12512-BL charger is characterized by a stable, fully encapsulated aluminum housing. This results in a high level of vibration resistance, dust protection and moisture protection of class IP68. The modern design ensures good radio interference suppression and high functional reliability. The SNT12512-BL charger is therefore ideal for supplying sensitive consumers in harsh industrial environments.
The charger is activated by connecting a SCHUKO plug. The charging current is limited to 25A. Otherwise, the charger adapts to the corresponding power requirement of the battery - until the end-of-charge voltage of 14.2V is reached.
  • high vibration resistance
  • Dust and moisture protection IP68
  • Simple connection via SCHUKO plug at the device input
  • OutputHirschmann plug, supplied with approx. 1.0 m cable, special length available on request (Order No.: 99035)
  • Device protection: shutdown on overtemperatur, automatic restart
  • PFC acc. to IEC/EN 61000-3-2
  • Output separated according to VDE 0570
  • Overload- and open circuit protected
  • Extra low safety potential PELV (EN 60204), SELV (EN 62368)
  • Short circuit proof
  • Operating status shown by LED
  • Parallel connection possible
  • Output protected against polarity reversal
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL CSA
Technical data more
Technical data "Charger SNT12512-BL for mobile applications"
Input voltage (VAC): 85 - 270 VAC (44-66 Hz)
Output voltage: 14.2 VDC
Output current: 25.0 A
Power: 355 W
Efficiency: >91%
Residual ripple: < 50mVrms
Operating temperature range: -40°C / +80°C
Dimensions (WxHxD): 171.0 x 304.0 x 103.0 mm
Weight: 7.50 kg
Mounting: wall mounting with screws
Downloads "Charger SNT12512-BL for mobile applications"

Product specification SNT12512-BL (825,9 KB)

Further information about batterie charger SNT12512-BL

Öffnen/Herunterladen

Data sheet SNT12512-BL (782,1 KB)

Technical data for batterie charger SNT12512-BL

Öffnen/Herunterladen

Manual SNT125-K (1,9 MB)

Operating instructions for batterie charger SNT12512-BL

Öffnen/Herunterladen
Dimensions "Charger SNT12512-BL for mobile applications"
Dimensions Charger SNT12512-BL for mobile applications
