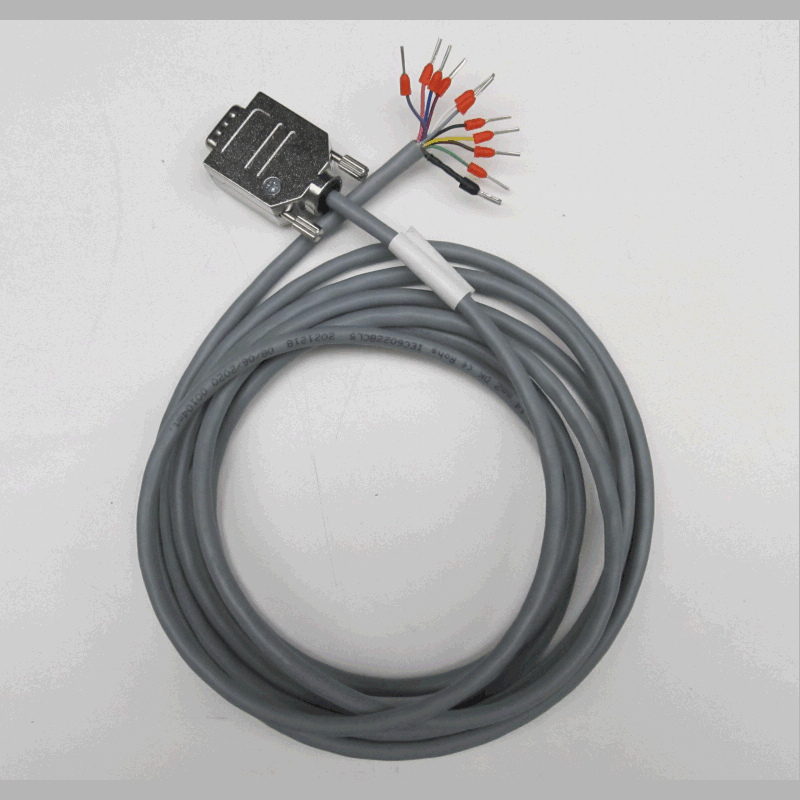

Connection cable with RS-232 / RS-485 connector for LDR80-RS

FEAS article number 99046

Price per unit:
€42.60 *

Prices ex works, plus packaging, shipping (and VAT / DE)

available within 10 days
RS-232 or RS-485 data can be exchanged between the LDR8024-RS and a PC via this cable. The... more
Product information "Connection cable with RS-232 / RS-485 connector for LDR80-RS"
RS-232 or RS-485 data can be exchanged between the LDR8024-RS and a PC via this cable. The decisive factor here is the pin assignment of the cable in accordance with the "Supplementary instructions for operating the LDR8024-RS via the RS interface".
(see download area of the LDR8024-RS).
  • for own configuration as RS-232 or RS-485 connection cable
  • connection cable for LDR8024-RS
  • cable length approx. 3.0 m
  • pre-assembled with wire end ferrules
  • standards: VDE0812, VDE47100
f you require a different cable length, please contact us.
Technical data more
Technical data "Connection cable with RS-232 / RS-485 connector for LDR80-RS"
Connector plug: D-Sub de 9 pines
Full metal cover
with long knurled screws
Cable: 9 x 0.14mm² cores, flexible
Cable diameter: 6.0 mm
Cable length: approx. 3.0 m
Color: grey
Weight: 0.20 kg
Material stranded wire: copper
Core insulation: PVC
Line resistance: 100 Ω/m
Shielding: wire braiding, tinned
Shielding effectiveness: > 90 dB
Jacket: PVC, flame retardant
Insulation resistance:    ≥ 200 mΩ
Test voltage:     ≥ 800 V
Operating voltage: ≤ 250 V (data cable only)
Max. bending radius: 40 mm

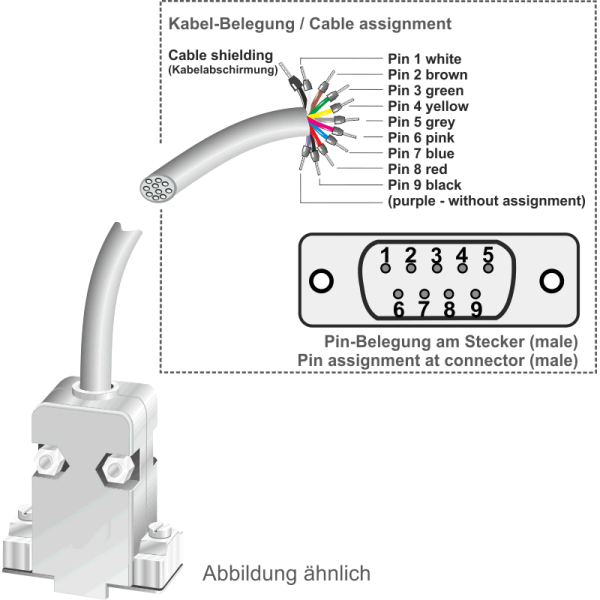

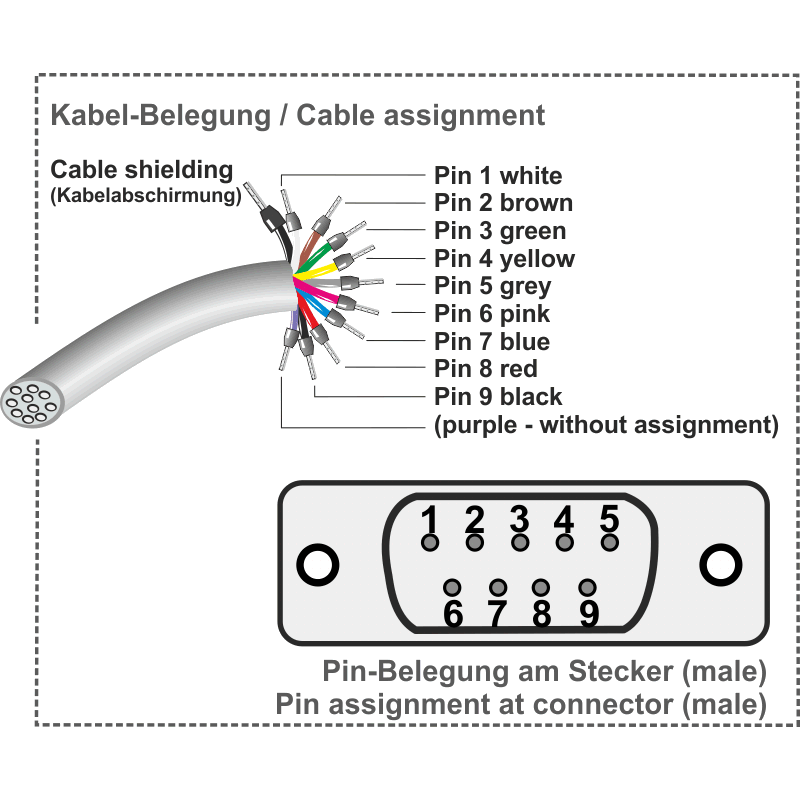

Dimensions "Connection cable with RS-232 / RS-485 connector for LDR80-RS"
Dimensions Connection cable with RS-232 / RS-485 connector for LDR80-RS
