Opto coupler Opto1-03
FEAS article number 59002
Price per unit:
€143.00 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €143.00 * | 0 % |
| From 3 | €140.14 * | 2 % |
| From 5 | €135.85 * | 5 % |
| From 10 | €132.99 * | 7 % |
| From 20 | €130.13 * | 9 % |
| From 50 | €128.70 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The optocoupler Opto1-03 is applied for an effective protection of signal lines of e.g. PLC... more
Product information "Opto coupler Opto1-03"

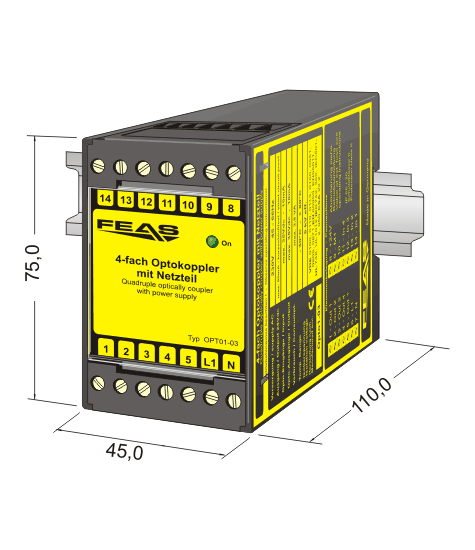

The optocoupler Opto1-03 is applied for an effective protection of signal lines of e.g. PLC control systems against overvoltages and interferences. This is achieved through the galvanic isolation of the signals at the integrated optocouplers.
These unallowable overvoltages can arise from wiring errors.
Also inappropriate measurements in a not de-energized state of the control system can lead to overvoltages at the input terminals of the PLC. A common cable routing of high voltage lines and PLC control lines, with poor or damaged insulation can as well lead to interferences or destroy the input circuitry of the PLC.
Because of the integrated power supply this quadruple optocoupler has very small dimensions, compared to 4 single optocouplers with external power supplies. All necessary interconnections, like the looping through of the voltage supply, are already realized. This reduces the expenditure of wiring.
These unallowable overvoltages can arise from wiring errors.
Also inappropriate measurements in a not de-energized state of the control system can lead to overvoltages at the input terminals of the PLC. A common cable routing of high voltage lines and PLC control lines, with poor or damaged insulation can as well lead to interferences or destroy the input circuitry of the PLC.
Because of the integrated power supply this quadruple optocoupler has very small dimensions, compared to 4 single optocouplers with external power supplies. All necessary interconnections, like the looping through of the voltage supply, are already realized. This reduces the expenditure of wiring.
- Short circuit proof
- Integrated power supply (24VDC, max. 80 mAmp.)
- Operating status shown by LED
- Suitable for the tropics - epoxy resin casted
Technical data
more
Technical data "Opto coupler Opto1-03"
| Supply voltage (VAC): | 230 VAC |
| Output voltage (VDC): | 24 VDC |
| Output current: | max. 80 mAmp. |
| Opto-Inputs: | max. 35.0 VDC, 10 mAmp. |
| Number of channels: | 4 |
| Opto-Outputs: | max. 35.0 VDC, 10 mAmp. |
| Operating temperature range: | -30°C / +80°C |
| Dimensions (WxHxD): | 45.0 x 75.0 x 110.0 mm |
| Weight: | 0.50 kg |
| Mounting: | On rails acc. to DIN 46277 |
