Relay coupler RKS1-4.24

FEAS article number 59137

Price per unit:
€124.80 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €124.80 * 0 %
From 3 €122.30 * 2 %
From 5 €118.56 * 5 %
From 10 €116.06 * 7 %
From 20 €113.57 * 9 %
From 50 €112.32 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
Whenever levels and power have to be matched, as is the case for low switching frequencies,... more
Product information "Relay coupler RKS1-4.24"
Whenever levels and power have to be matched, as is the case for low switching frequencies, electromechanical relays are the preferred choice as interface components between peripheral process devices and the control logic. In principle, electromechanical relays are divided into two main categories, monostable and bistable.
Monostable AC or DC-relays return their swich contacts to a non-operative state independently after coil current has been switched off.
Bistable relays, on the other hand, leave their switch contacts in the last switched position after the energising current has been interrupted.
  • Output separated
  • Input suitable for AC and DC voltage
  • Operating status shown by LED
  • Precious metal contacts for greater switching performance
  • Simple mounting on rail acc. to DIN 46277
  • Conforms to EMC and low voltage directive
  • Safety acc. to VDE, EN, UL, CSA
Technical data more
Technical data "Relay coupler RKS1-4.24"
Nominal input voltage: 24 VAC / 24 VDC
Switching voltage (Output): 250 VAC / 48 VDC
Switching current (Output): max. 12 A / max. 2.4 A
Switching barrier: ≥ 18 V
Number of channels: 4
Operating temperature range: -30°C / +70°C
Dimensions (WxHxD): 55.0 x 75.0 x 110.0 mm
Weight: 0.30 kg
Mounting: On rails acc. to DIN 46277, wall mounting possible
Downloads "Relay coupler RKS1-4.24"

Manual relay coupler RKS / RKW (347,8 KB)

Operating instructions for relay couplers RKS / RKW

Öffnen/Herunterladen

Product specification RKS1-4.24 (260,1 KB)

Further information about relay coupler RKS1-4.24

Öffnen/Herunterladen

Data sheet RKS1-4.24 (240,4 KB)

Technical data for relay coupler RKS1-4.24

Öffnen/Herunterladen

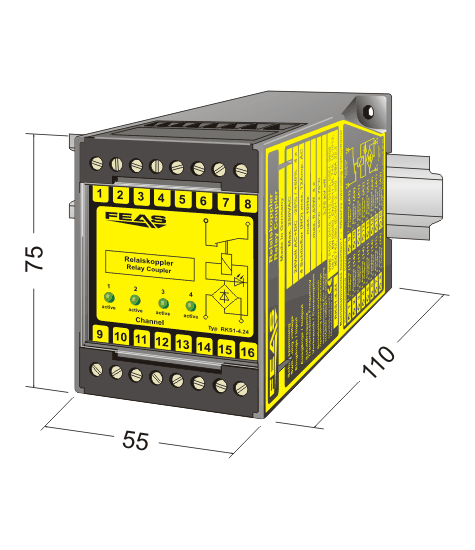

Dimensions "Relay coupler RKS1-4.24"
Dimensions Relay coupler RKS1-4.24
