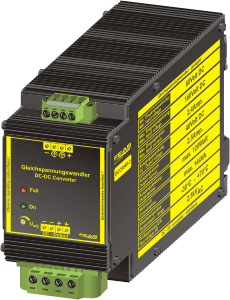

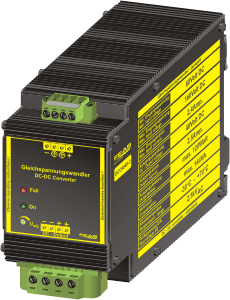

DC-DC converter DCC9048-3
FEAS article number 609050
Price per unit:
€275.20 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €275.20 * | 0 % |
| From 3 | €269.70 * | 2 % |
| From 5 | €261.44 * | 5 % |
| From 10 | €255.94 * | 7 % |
| From 20 | €250.43 * | 9 % |
| From 50 | €247.68 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The robust DC-DC converters of the DCC9048 series supply your sensitive loads with the... more
Product information "DC-DC converter DCC9048-3"
The robust DC-DC converters of the DCC9048 series supply your sensitive loads with the required DC voltage.
They convert the DC voltage supplied at the input into a DC voltage with a higher or lower voltage level. Thereby, the short-circuit-proof DC voltage at the output can be adjusted in the range from 45 to 60VDC. This means that the DC-DC converters can also supply standby batteries in parallel operation or can be used for loads that require a high starting current.
The powerful DC-DC converters from FEAS are suitable for supplying sensitive loads in harsh industrial environments. The DC-DC converters are integrated into a functional and stable aluminum housing and have good radio interference suppression and high functional reliability.
They convert the DC voltage supplied at the input into a DC voltage with a higher or lower voltage level. Thereby, the short-circuit-proof DC voltage at the output can be adjusted in the range from 45 to 60VDC. This means that the DC-DC converters can also supply standby batteries in parallel operation or can be used for loads that require a high starting current.
The powerful DC-DC converters from FEAS are suitable for supplying sensitive loads in harsh industrial environments. The DC-DC converters are integrated into a functional and stable aluminum housing and have good radio interference suppression and high functional reliability.
- Extra low safety potential PELV (EN 50178), SELV (EN 62368)
- Output separated according to VDE 0551
- Overload- and open circuit protected
- Short circuit proof
- Operating status shown by LED
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "DC-DC converter DCC9048-3"
| Input voltage (VDC): | 70.0 - 155.0 VDC |
| Output voltage: | 48 VDC |
| Adjustment range: | 45.0 - 60.0 VDC |
| Output current: | 2.5 A |
| Power: | 120.0 W |
| Efficiency: | 89% |
| Residual ripple: | < 200 mVSS |
| Operating temperature range: | -30°C / +70°C |

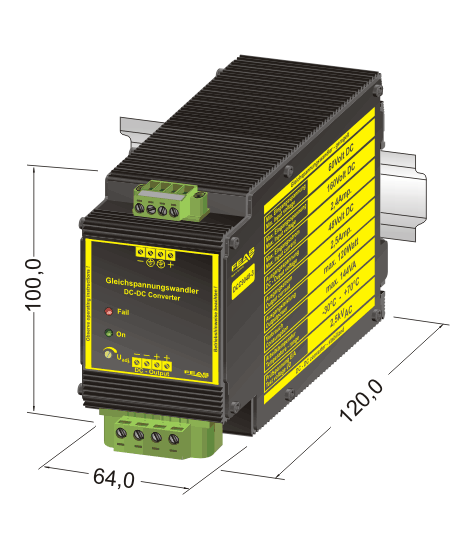

| Dimensions (WxHxD): | 64.0 x 100.0 x 120.0 mm |
| Weight: | 1.25 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "DC-DC converter DCC9048-3"
|
Data sheet DCC9048-3 (528,7 KB) Technical data for the DC-DC converter DCC9048-3 |
Öffnen/Herunterladen | |
|
Product specification DCC9048-3 (410,7 KB) Further information about the DC-DC converter DCC9048-3 |
Öffnen/Herunterladen | |
|
Manual DCC90 (681,7 KB) Operating instructions for DC-DC converter of the series DCC90 |
Öffnen/Herunterladen |
