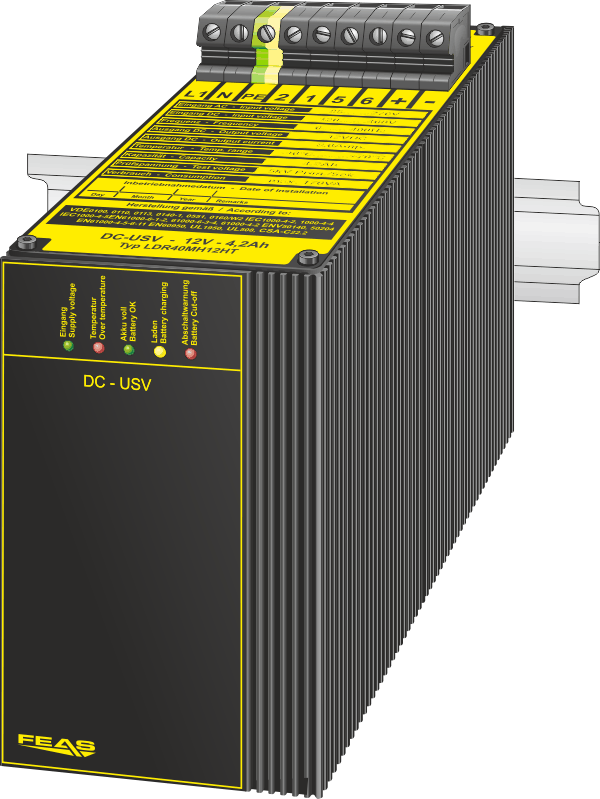

Power supply with output buffering LDR40MH12-HT-H

FEAS article number 589933

Price per unit:
€491.40 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €491.40 * 0 %
From 3 €476.66 * 3 %
From 5 €466.83 * 5 %
From 10 €457.00 * 7 %
From 20 €447.17 * 9 %
From 50 €442.26 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available within 10 days
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt... more
Product information "Power supply with output buffering LDR40MH12-HT-H"
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.
  • Extreme temperature accupack: -40 .... + 70°C
  • Output separated according to VDE 0551
  • Extra low safety potential PELV (EN 60204), SELV (EN 62368)
  • Overload- and open circuit protected
  • Operating status shown by LED
  • Output protected against polarity reversal
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL, CSA

Battery replacement

To exchange the batteries, you will need:

  • 1x Accumulator 12V 4400mAh (38979)
Technical data more
Technical data "Power supply with output buffering LDR40MH12-HT-H"
Input voltage (VAC): 85-270 VAC (0-400 Hz)
Input voltage (VDC): 120-400 VDC
Output voltage: 9,8 - 13,0 VDC
Output current: 8.0 A
Capacity: 4.2 Ah
Power: 96.0 Watts
Efficiency: 86%
Residual ripple: < 25 mVPP
Operating temperature range: -40°C / +70°C
Dimensions (WxHxD): 83.0 x 161.0 x 160.5 mm
Weight: 3.50 kg
Mounting: On rails acc. to DIN 46277
Downloads "Power supply with output buffering LDR40MH12-HT-H"

Manual LDR40-HT (736,5 KB)

Operating instructions for power supplies of the series LDR40-HT

Öffnen/Herunterladen

Product specification LDR40MH12-HT (138,7 KB)

Further information about the power supply with output buffering LDR40MH12-HT-H

Öffnen/Herunterladen

Data sheet LDR40MH12-HT (96,0 KB)

Technical data for power supply with output buffering LDR40MH12-HT-H

Öffnen/Herunterladen

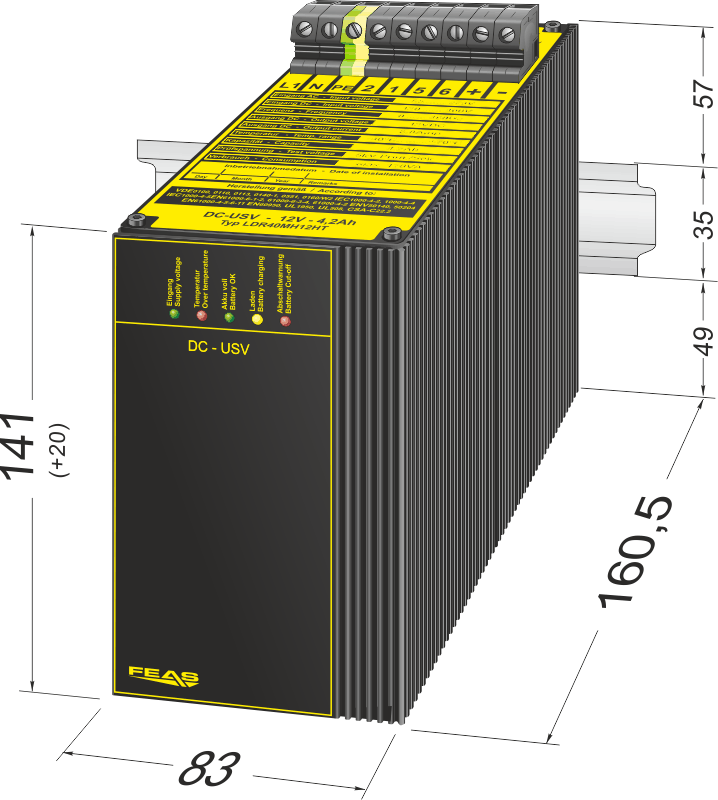

Dimensions "Power supply with output buffering LDR40MH12-HT-H"
Dimensions Power supply with output buffering LDR40MH12-HT-H
