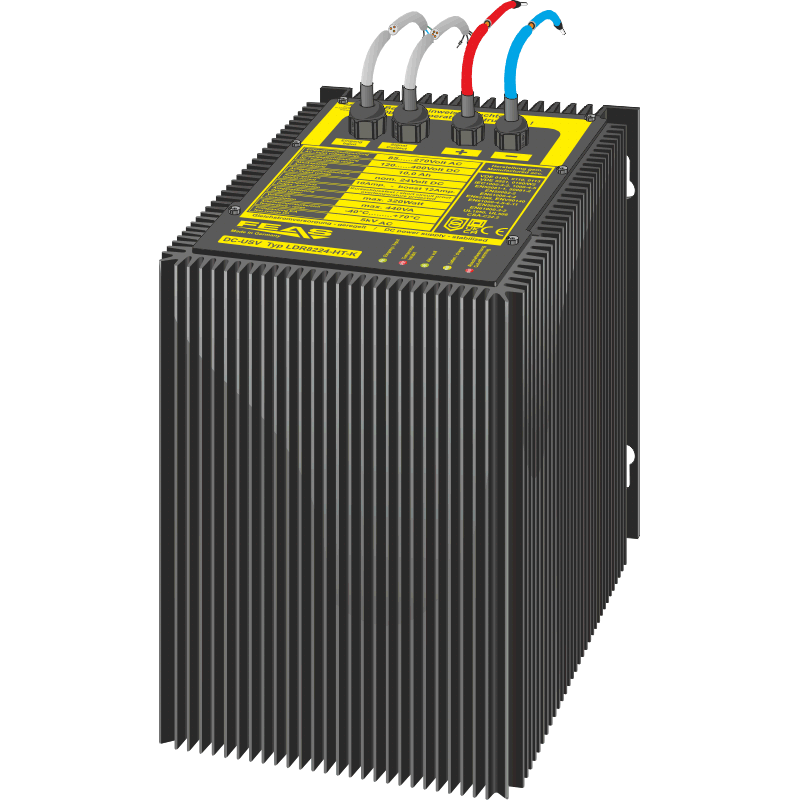

Power supply with output buffering LDR8224-HT-K
FEAS article number 589951
Price per unit:
€1,376.20 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €1,376.20 * | 0 % |
| From 3 | €1,334.91 * | 3 % |
| From 5 | €1,307.39 * | 5 % |
| From 10 | €1,279.87 * | 7 % |
| From 20 | €1,252.34 * | 9 % |
| From 50 | €1,238.58 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available upon request
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt... more
Product information "Power supply with output buffering LDR8224-HT-K"
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.
- Extreme temperature accu -40°C ... +70°C
- Cable version
- Output separated according to VDE 0570
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Overload- and open circuit protected, short-circuit proof
- PFC acc. to IEC/EN 61000-3-2
- Operating status shown by LED
- Manual shutdown possible when running in buffer mode
- Nickel-metal hydride batteries
- Automatic battery test
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Battery replacement
To exchange the batteries, you will need:
- 5x Accumulator 24V 2200mAh (38978)
Technical data
more
Technical data "Power supply with output buffering LDR8224-HT-K"
| Input voltage (VAC): | 85-270 VAC (0-66 Hz) |
| Input voltage (VDC): | 120-400 VDC |
| Output voltage: | 24 VDC |
| Output current: | 10.0 A |
| Capacity: | 10.0 Ah |
| Power: | 280.0 Watts |
| Efficiency: | 91% |
| Residual ripple: | < 25 mVPP |
| Operating temperature range: | -40°C / +70°C |

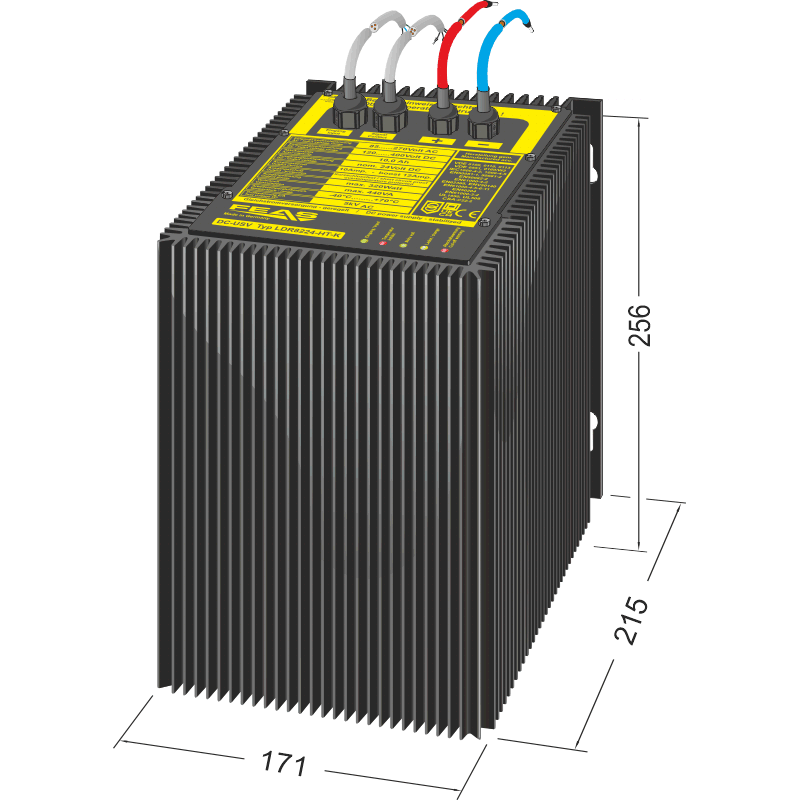

| Dimensions (WxHxD): | 171.0 x 256.0 x 215.0 mm |
| Weight: | 16.50 kg |
| Mounting: | wall mounting with screws |
Downloads "Power supply with output buffering LDR8224-HT-K"
|
Data sheet LDR8224-HT-K (87,4 KB) Technical data for power supply with output buffering LDR8224-HT-K |
Öffnen/Herunterladen | |
|
Manual LDR82-HT-K (839,4 KB) Operating instructions for power supplies of the series LDR82-HT-K |
Öffnen/Herunterladen | |
|
Product specification LDR8224-HT-K (154,1 KB) Further information about the power supply with output buffering LDR8224-HT-K |
Öffnen/Herunterladen |
