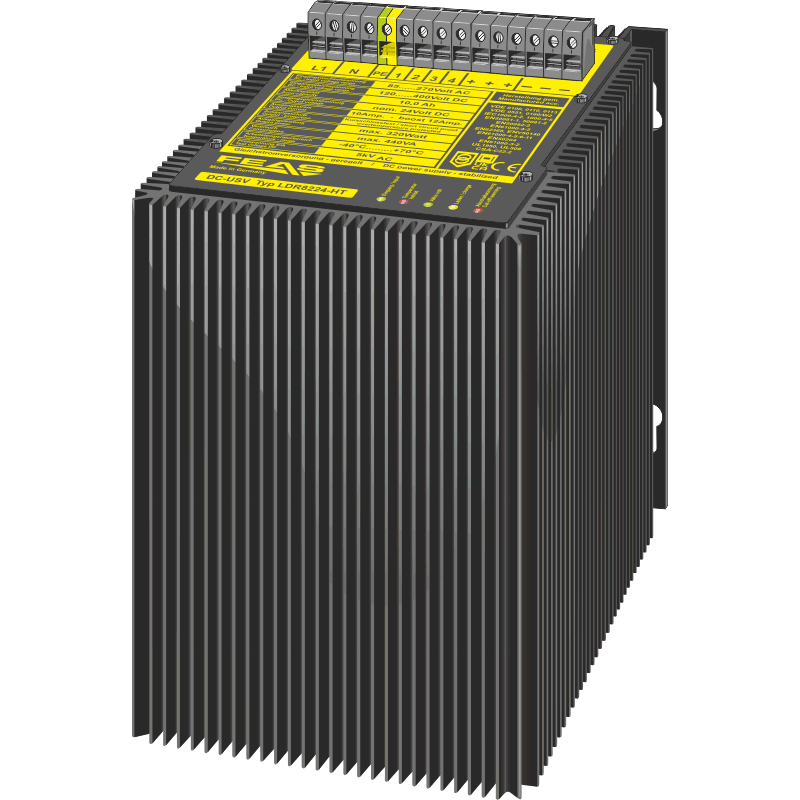

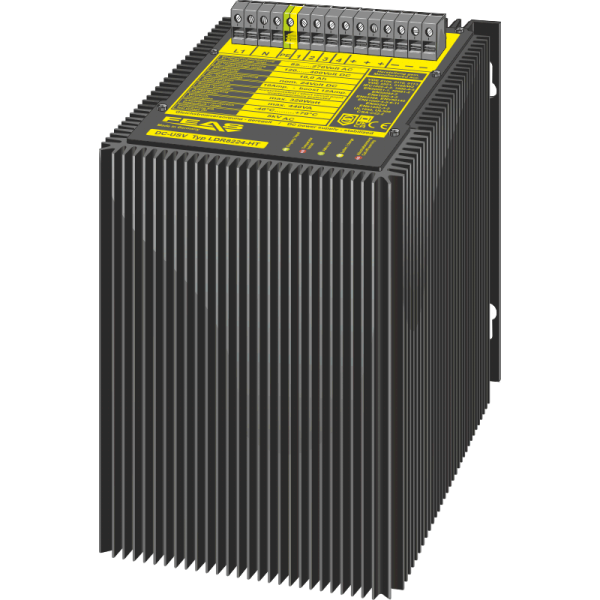

Power supply with output buffering LDR8224-HT

FEAS article number 589946

Price per unit:
€1,360.10 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €1,360.10 * 0 %
From 3 €1,319.30 * 3 %
From 5 €1,292.09 * 5 %
From 10 €1,264.89 * 7 %
From 20 €1,237.69 * 9 %
From 50 €1,224.09 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available upon request
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt... more
Product information "Power supply with output buffering LDR8224-HT"
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.
  • Extreme temperature accu -40°C ... 70°C
  • Output separated according to VDE 0570
  • Extra low safety potential PELV (EN 60204), SELV (EN 62368)
  • Overload- and open circuit protected, short-circuit proof
  • PFC acc. to IEC/EN 61000-3-2
  • Operating status shown by LED
  • Manual shutdown possible when running in buffer mode
  • Nickel-metal hydride batteries
  • Automatic battery test
  • Output protected against polarity reversal
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL, CSA

Battery replacement

To exchange the batteries, you will need:

  • 5x Accumulator 24V 2200mAh (38978)
Technical data more
Technical data "Power supply with output buffering LDR8224-HT"
Input voltage (VAC): 85-270 VAC (0-66 Hz)
Input voltage (VDC): 120-400 VDC
Output voltage: 24 VDC
Output current: 10.0 A
Capacity: 10.0 Ah
Power: 280.0 Watts
Efficiency: 91%
Residual ripple: < 25 mVPP
Operating temperature range: -40°C / +70°C
Dimensions (WxHxD): 171.0 x 256.0 x 215.0 mm
Weight: 16.50 kg
Mounting: wall mounting with screws
Downloads "Power supply with output buffering LDR8224-HT"

Manual LDR8212-HT + LDR8224-HT (829,6 KB)

Operating instructions for power supplies of the series LDR8212-HT + LDR8224-HT

Öffnen/Herunterladen

Data sheet LDR8224-HT (91,2 KB)

Technical data for power supply with output buffering LDR8224-HT

Öffnen/Herunterladen

Product specification LDR8224-HT (160,4 KB)

Further information about the power supply with output buffering LDR8224-HT

Öffnen/Herunterladen

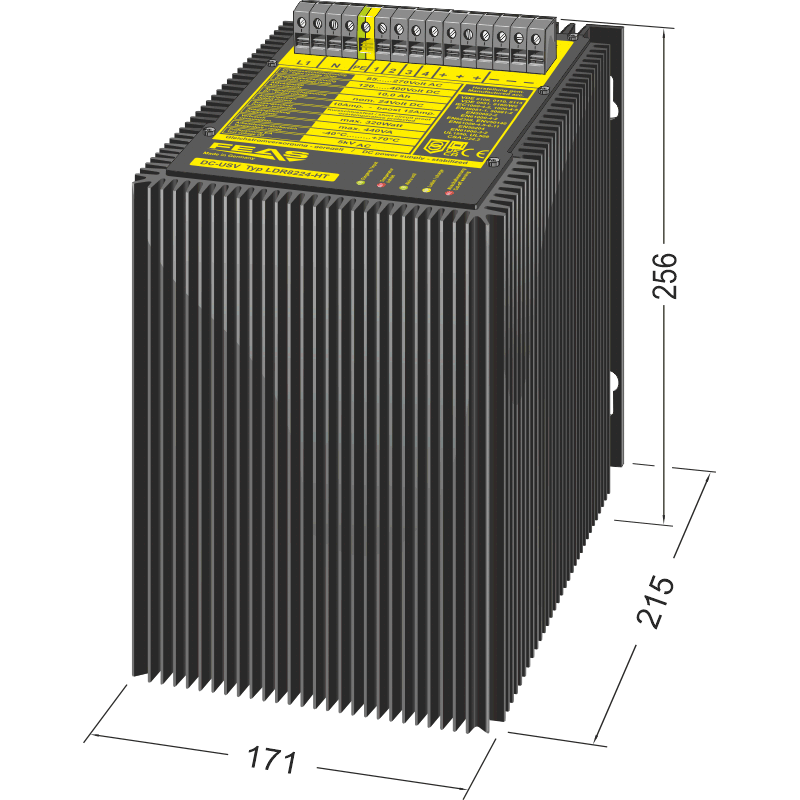

Dimensions "Power supply with output buffering LDR8224-HT"
Dimensions Power supply with output buffering LDR8224-HT
