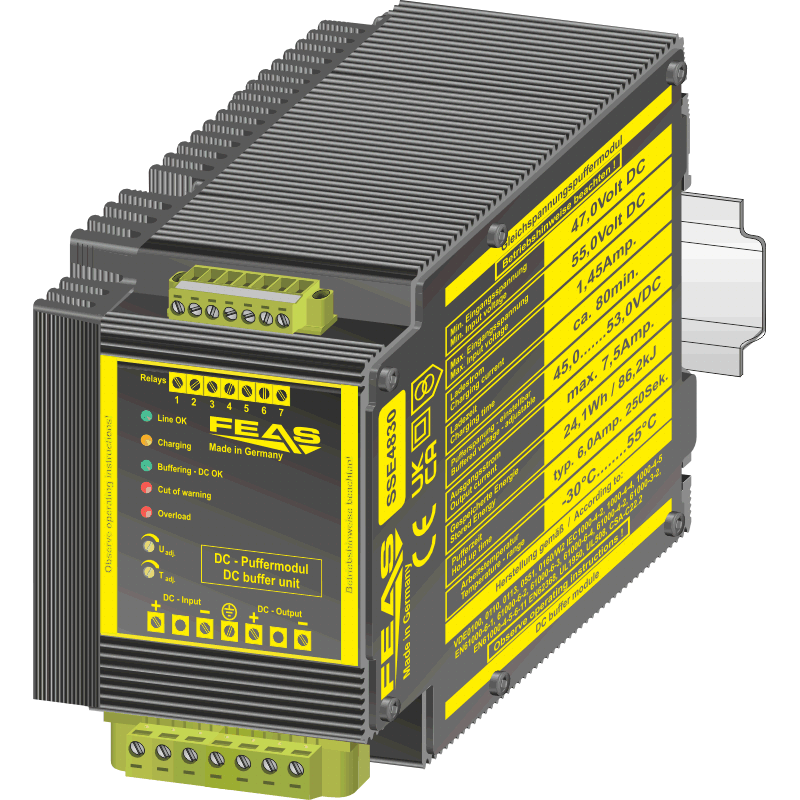

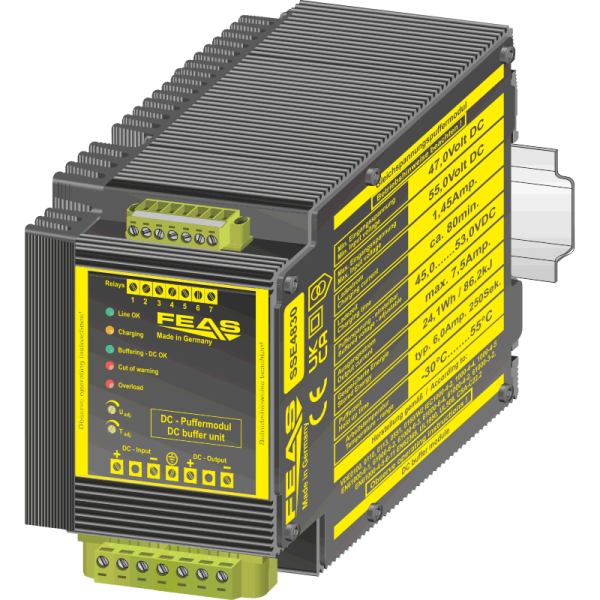

Buffer module SSE4830 - DC-UPS with supercapacitors
FEAS article number 624830
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €715.10 * | 0 % |
| From 3 | €700.80 * | 2 % |
| From 5 | €679.35 * | 5 % |
| From 10 | €665.04 * | 7 % |
| From 20 | €650.74 * | 9 % |
| From 50 | €643.59 * | 10 % |
Prices ex works, plus packaging, shipping (and VAT / DE)
Compact high-performance DC UPS for reliable power failure protection
The innovative SSE4830 buffer module is the compact solution for reliable power supply security in critical applications. Equipped with supercapacitors, this DC UPS offers impressive performance and reliability. Whether for bridging mains failures, supporting peak loads or switching operations - our compact SSE4830 module ensures a continuous and reliable power supply.
Outstanding features
Maintenance-free, no battery installed: Thanks to the use of storage capacitors, our SSE4830 uninterruptible power supply (UPS) is completely maintenance-free. Unlike conventional UPS systems, you don't have to worry about replacing batteries.
Simple installation: The buffer module (DC UPS with electrolytic capacitors) is either connected in parallel directly into the regulated DC voltage circuit at any point or used for the selective protection of critical loads.
- DC UPS / DC buffer module for 48 VDC systems
- With supercaps - no accumulator - maintenance-free
- buffertime adjustable
- Support for short-term increased power demand
- Relay for remote monitoring the supply voltage
- Operating status shown by LED
- Short charging times
- Extra low safety potential
- Long lifetime
- Simple wiring, easy handling
- Overload- and open circuit protected
- Short circuit proof
- Parallel connection possible
- Compact design
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
| Input voltage (VDC): | 47.0 - 55.0 VDC |
| Buffer voltage: | 45.0 - 53.0 VDC (adjustable) |
| Output current: | max. 7.5 Amp. |
| Hold up time: | typ. 6.0Amp. 250sec. (adjustable 5sec. - max.) |
| Stored energy: | 24.1 Wh / 86.2 kJ |
| Charging current: | 1.45 Amp. |
| Charging time: | ca. 80 min. |
| Residual ripple: | < 50mVrms |
| Operating temperature range: | -30°C / +55°C |
| Dimensions (WxHxD): | 110.0 x 132.0 x 138.0 mm |
| Weight: | 3.6 kg |
| Mounting: | On rails acc. to DIN 46277 or wall mounting with screws |
|
Manual SSE30 (1,1 MB) Operating instructions for buffer moduls of the series SSE30 |
Öffnen/Herunterladen | |
|
Data sheet SSE4830 (187,2 KB) Technical data for buffer module SSE4830 |
Öffnen/Herunterladen | |
|
Product specification SSE4830 (204,6 KB) Further information about buffer module SSE4830 |
Öffnen/Herunterladen |
