DC-UPS LDR5012-6-H

Price per unit:

€512.80 *

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity	Unit price	Discount
To 2	€512.80 *	0 %
From 3	€497.42 *	3 %
From 5	€487.16 *	5 %
From 10	€476.90 *	7 %
From 20	€466.65 *	9 %
From 50	€461.52 *	10 %

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

available within 10 days

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt... more

Close menu

Product information "DC-UPS LDR5012-6-H"

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.

High storage capacity
Messages with remote monitoring
Safeguard against total discharge
Operating status shown by LED
No overcharging
Wide range input voltage
Suitable for the tropics - epoxy resin casted
Safety acc. to VDE, EN, UL, CSA

Battery replacement

To exchange the batteries, you will need:

1x Accumulator 12V 6000mAh (38716)

For this DC-UPS recommended power supplies

85 - 270VAC / 120 - 400VAC (switch mode): Power supply SNT11024-H
115V / 230VAC (smoothed): Power supply PSU18032-H
400VAC (smoothed): Power supply PS2U18024-H

Technical data more

Close menu

Technical data "DC-UPS LDR5012-6-H"

Input voltage (VDC):	18.0 - 68.0 VDC
Output voltage:	12 VDC
Output current:	5.0 A
Capacity:	5.0 Ah
Power:	60.0 Watts
Efficiency:	88%
Residual ripple:	< 25 mVSS
Operating temperature range:	-20°C / +50°C

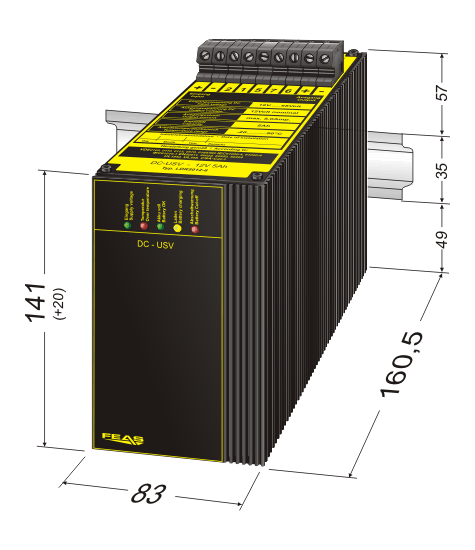

Dimensions (WxHxD):	83.0 x 161.0 x 160.5 mm
Weight:	3.50 kg
Mounting:	On rails acc. to DIN 46277
