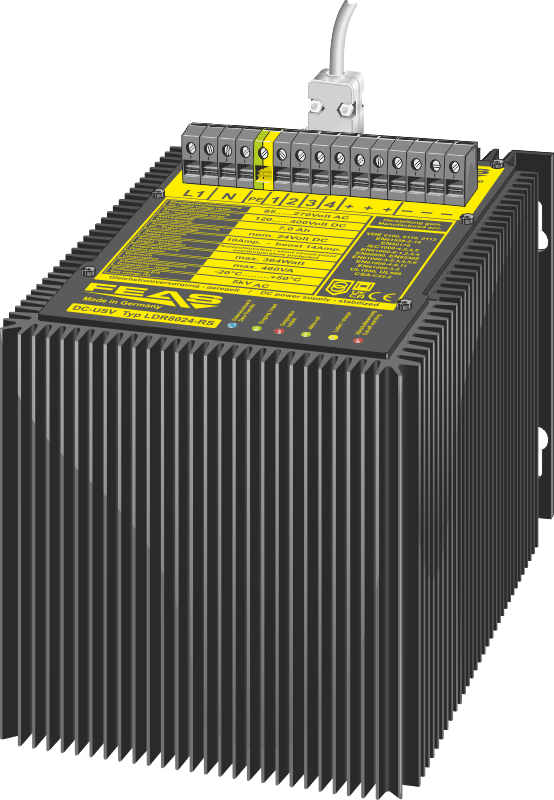

DC-UPS with RS interface LDR8024-RS
FEAS article number 589952
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €812.90 * | 0 % |
| From 3 | €796.64 * | 2 % |
| From 5 | €772.26 * | 5 % |
| From 10 | €756.00 * | 7 % |
| From 20 | €739.74 * | 9 % |
| From 50 | €731.61 * | 10 % |
Prices ex works, plus packaging, shipping (and VAT / DE)
Your perfect protection against power failures that can otherwise cause high costs!
At the same time, the RS-232/RS-485 interface enables remote control and remote monitoring of the LDR.
LDR8024-RS - DC UPS application
Via the RS-232/RS-485 interface, the LDR returns status messages (e.g. on mains, overtemperature or battery status) and accepts settings (e.g. unit parameters) or commands (e.g. to disconnect the load or to switch off the LDR).
- Long buffer time: 40min - typ. 10A / 24V
- Remote monitoring and control via RS-232/ RS-485 interface
- LED operation display: Mains, battery status, buffer operation, overtemperature, data exchange, shutdown warning
- Current limitation: max. 140%, dynamically time-limited
- Fuse mode: permanent switch-off when current limit is exceeded
- Easy battery management: automatic battery test, deep discharge protection, easy battery replacement
- Lead-acid battery (Gel cell batteries)
- Can be switched off manually in buffer mode
- Output separated according to VDE 0570
- Extra low safety potential PELV (EN60204), SELV (EN62368)
- Overload- and open circuit protected, short-circuit proof
- PFC acc. to IEC/EN 61000-3-2
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
RS interface cable
An RS interface cable is required to operate the LDR8024-RS via the RS interface.
This is not included in the scope of delivery, but can be ordered separately as an accessory!
- Connection cable with RS-232 / RS-485 connector (Art.-No.: 99046)
Terminal Software
You also need terminal software for your PC to use the RS interface. This can be found, for example, in the download area for the LDR8024-RS (see below).
Battery replacement
To exchange the batteries, you will need:
- 2x Accumulator 12V 9000mAh (9004)
| Input voltage (VAC): | 85-270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120-400 VDC |
| Output voltage: | 24 VDC |
| Output current: | 10.0 A |
| Capacity: | 7.0 Ah |
| Power: | 240.0 Watts |
| Efficiency: | 91% |
| Residual ripple: | < 100 mVrms |
| Operating temperature range: | -20°C / +50°C |

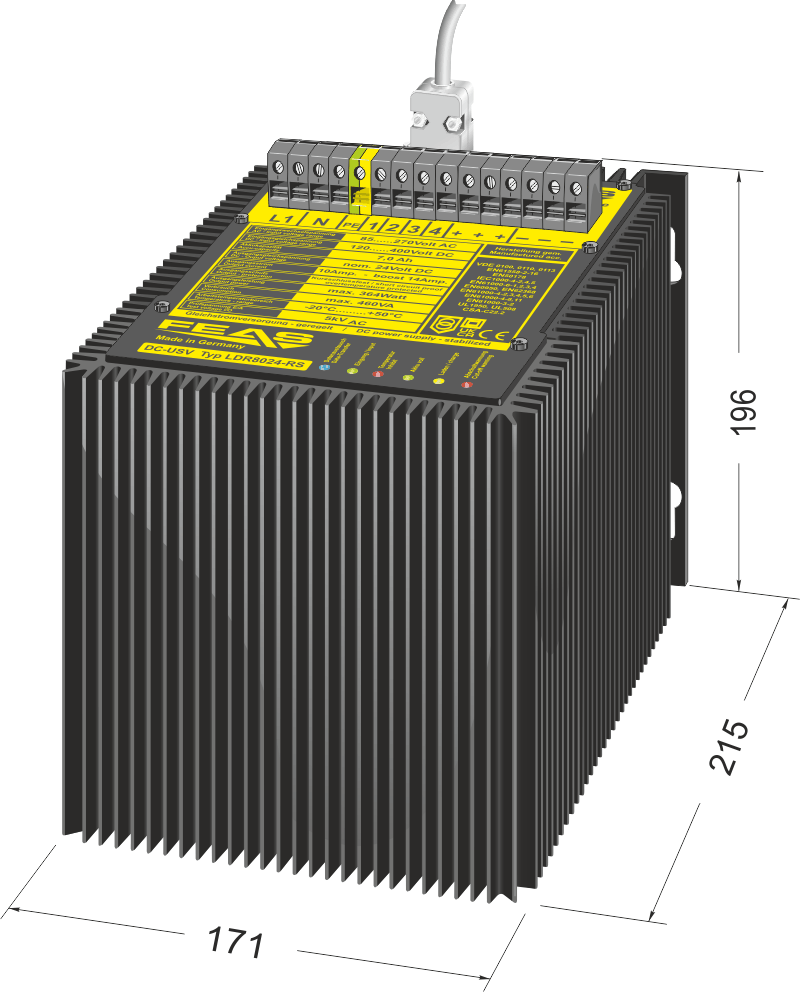

| Dimensions (WxHxD): | 171.0 x 196.0 x 215.0 mm |
| Weight: | 12.5 kg |
| Mounting: | wall mounting with screws |
|
Data sheet LDR8024-RS (345,7 KB) Technical data for power supply with output buffering LDR8024-RS |
Öffnen/Herunterladen | |
|
Manual LDR8024-RS - RS interface (5,4 MB) Operating instructions for the RS interface, for power supplies of the series LDR8012-RS + LDR8024-RS |
Öffnen/Herunterladen | |
|
Manual LDR8024-RS - general (309,2 KB) Operating instructions for power supplies of the series LDR8012-RS + LDR8024-RS |
Öffnen/Herunterladen | |
|
Product specification LDR8024-RS (519,2 KB) Further information about the power supply with output buffering LDR8024-RS |
Öffnen/Herunterladen |
