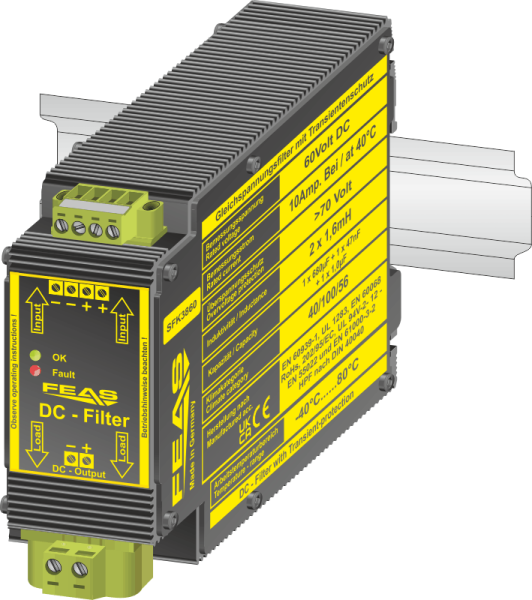

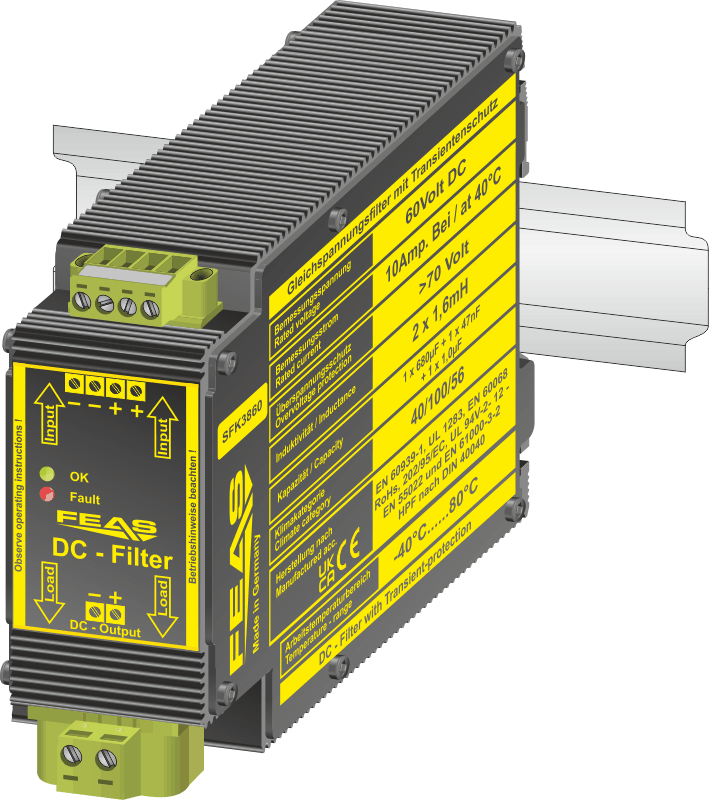

Radio interference supression filter SFK3860

FEAS article number 51106

Price per unit:
€197.30 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €197.30 * 0 %
From 3 €193.35 * 2 %
From 5 €187.44 * 5 %
From 10 €183.49 * 7 %
From 20 €179.54 * 9 %
From 50 €177.57 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
DC voltage filters of the SFK38 series are used to suppress line-bound interferences in DC... more
Product information "Radio interference supression filter SFK3860"
DC voltage filters of the SFK38 series are used to suppress line-bound interferences in DC supply lines or DC control lines, which could otherwise lead to errors during signal transmissions.
Interference pulses or interference voltages are damped independently of their point of origin. The built-in overvoltage protection effectively dissipates unwanted transients. The careful combination of chokes and capacitors achieves effective interference suppression over a wide frequency range.
The SFK38 DC filters are connected between the DC source and the load to be protected.
  • High insertion loss over a wide frequency range
  • Integrated transient protection
  • Optimized against disturbances in the lower frequency range
  • Particularly slim housing design, only 47mm wide
  • Robust aluminum housing for top hat rail mounting
  • LED operation indicator
  • Tropicalized due to cast resin encapsulation
  • Safety according to VDE, EN, UL CSA
Technical data more
Technical data "Radio interference supression filter SFK3860"
Rated voltage: 60 VDC
Rated current: 10.0 A
Inductance: 2 x 1.6mH toroidal core
Capacity: 1 x 150µF elko, 2 x 0.47µF film, 2 x 1.0µF film
Operating temperature range: -40°C / +85°C
Dimensions (WxHxD): 47.0 x 100.0 x 120.0 mm
Weight: 1.1 kg
Mounting: On rails acc. to DIN 46277
Downloads "Radio interference supression filter SFK3860"

Manual SFK38 (935,1 KB)

Operating instructions for the radio interference supression filter of the serie SFK38

Öffnen/Herunterladen

Data sheet SFK3824-60 (409,9 KB)

Technical data for the radio interference supression filter SFK38

Öffnen/Herunterladen

Product specification SFK38 (384,8 KB)

Further information about the radio interference supression filter SFK38

Öffnen/Herunterladen

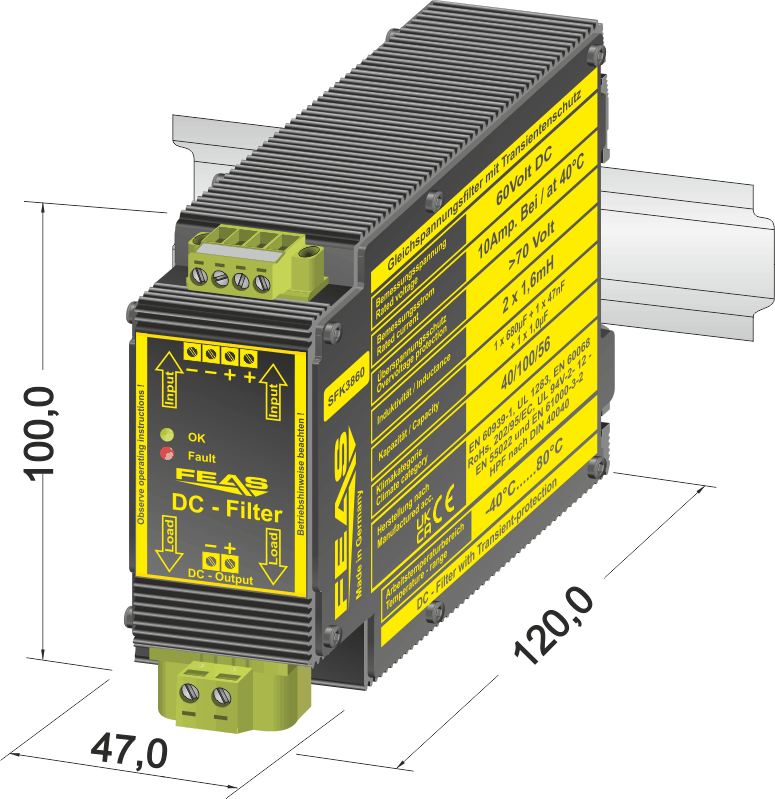

Dimensions "Radio interference supression filter SFK3860"
Dimensions Radio interference supression filter SFK3860
