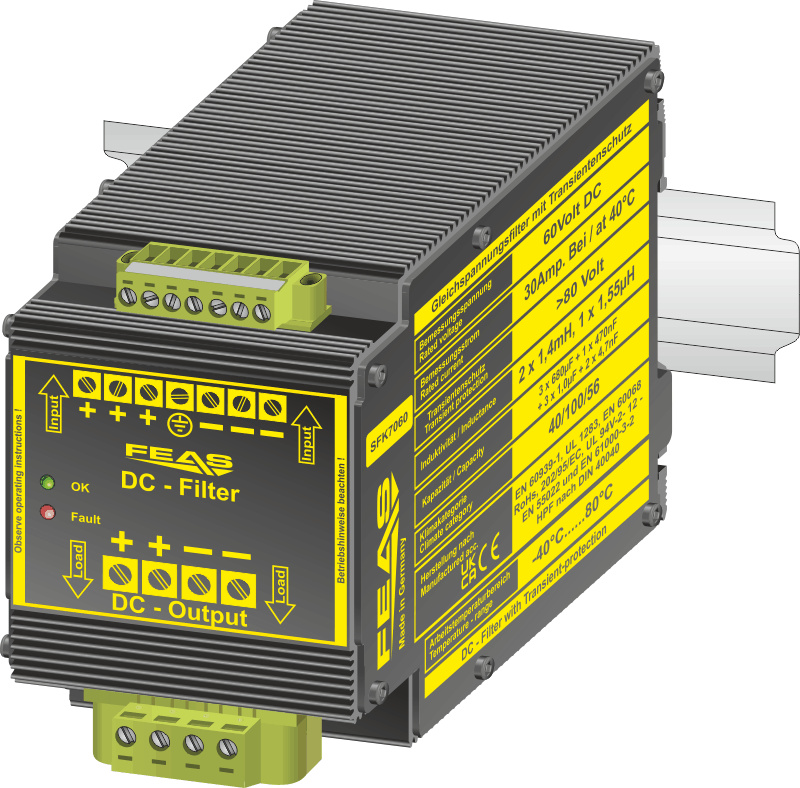

Radio interference supression filter SFK7060
FEAS article number 584950
Price per unit:
€243.00 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €243.00 * | 0 % |
| From 3 | €238.14 * | 2 % |
| From 5 | €230.85 * | 5 % |
| From 10 | €225.99 * | 7 % |
| From 20 | €221.13 * | 9 % |
| From 50 | €218.70 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
DC voltage filters of the SFK70 series are used to suppress line-bound interferences in DC... more
Product information "Radio interference supression filter SFK7060"
DC voltage filters of the SFK70 series are used to suppress line-bound interferences in DC supply lines or DC control lines, which could otherwise lead to errors during signal transmissions.
Interference pulses or interference voltages are damped independently of their point of origin. The built-in overvoltage protection effectively dissipates unwanted transients. The careful combination of chokes and capacitors achieves effective interference suppression over a wide frequency range.
The SFK38 DC filters are connected between the DC source and the load to be protected.
Interference pulses or interference voltages are damped independently of their point of origin. The built-in overvoltage protection effectively dissipates unwanted transients. The careful combination of chokes and capacitors achieves effective interference suppression over a wide frequency range.
The SFK38 DC filters are connected between the DC source and the load to be protected.
- High insertion loss over a wide frequency range
- Integrated transient protection
- Optimized against disturbances in the lower frequency range
- Particularly slim housing design, only 47mm wide
- Robust aluminum housing for top hat rail mounting
- LED operation indicator
- Tropicalized due to cast resin encapsulation
- Safety according to VDE, EN, UL CSA
Technical data
more
Technical data "Radio interference supression filter SFK7060"
| Rated voltage: | 60 VDC |
| Rated current: | 30.0 A |
| Inductance: | 2 x 1.4mH, 1 x 1.55µH toroidal core |
| Capacity: | 3 x 680µF elko, 1 x 470nF film, 3 x 1.0µF film, 2 x 4.7nF |
| Operating temperature range: | -40°C / +85°C |

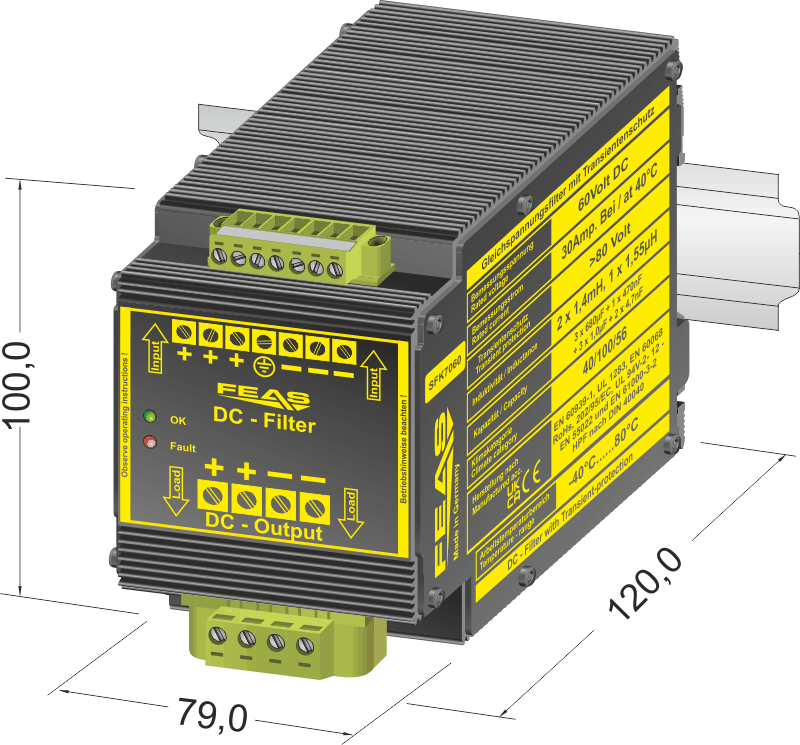

| Dimensions (WxHxD): | 79.0 x 100.0 x 120.0 mm |
| Weight: | 1.95 kg |
| Mounting: | On rails acc. to DIN 46277 |
Downloads "Radio interference supression filter SFK7060"
|
Data sheet SFK70 (390,3 KB) Technical data for the radio interference supression filter SFK70 |
Öffnen/Herunterladen | |
|
Product specification SFK70 (387,1 KB) Further information about the radio interference supression filter SFK70 |
Öffnen/Herunterladen | |
|
Manual SFK70 (944,7 KB) Operating instructions for the radio interference supression filter of the serie SFK70 |
Öffnen/Herunterladen |
