Rated-value-distributor SV03
FEAS article number 58705
Price per unit:
€89.10 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The rated-value distributor of the SV03 series is to be used for transmitting and distributing a... more
Product information "Rated-value-distributor SV03"
The rated-value distributor of the SV03 series is to be used for transmitting and distributing a nominal voltage between 0 volts and 10 volts to five outputs which can be switched independently from each other.
- Transmitting and distributing a nominal voltage to five outputs
- Separated Outputs
- Operation status shown by LED
- compact enclosure design
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Rated-value-distributor SV03"
Rated input: | 0 - 10.0 volts |
Rated value output: | 5 x 0 - 10.0 volts |
Operating voltage: | 23.5 - 30.0 VDC |
Operating temperature range: | -10°C / +70°C |

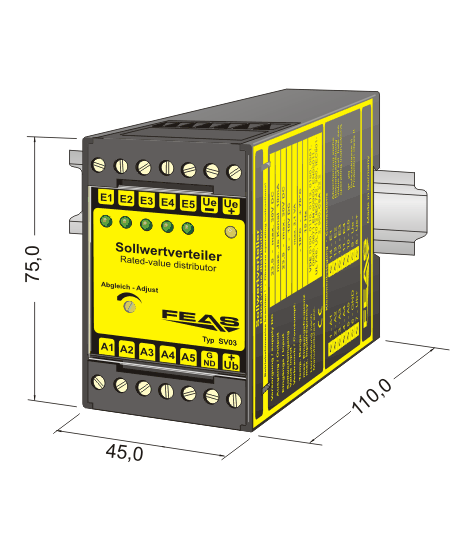

Dimensions (WxHxD): | 45.0 x 75.0 x 110.0 mm |
Weight: | 0.50 kg |
Mounting: | On rails acc. to DIN 46277 or wall mounting with screws |
Downloads "Rated-value-distributor SV03"
Data sheet SV03 (415,2 KB) Technical data for the rated-value-distributor SV03 |
Öffnen/Herunterladen | |
Manual SV03 (445,7 KB) Operating instructions for the rated-value-distributor SV03 |
Öffnen/Herunterladen | |
Product specification SV03 (215,6 KB) Further information about the rated-value-distributor SV03 |
Öffnen/Herunterladen |
