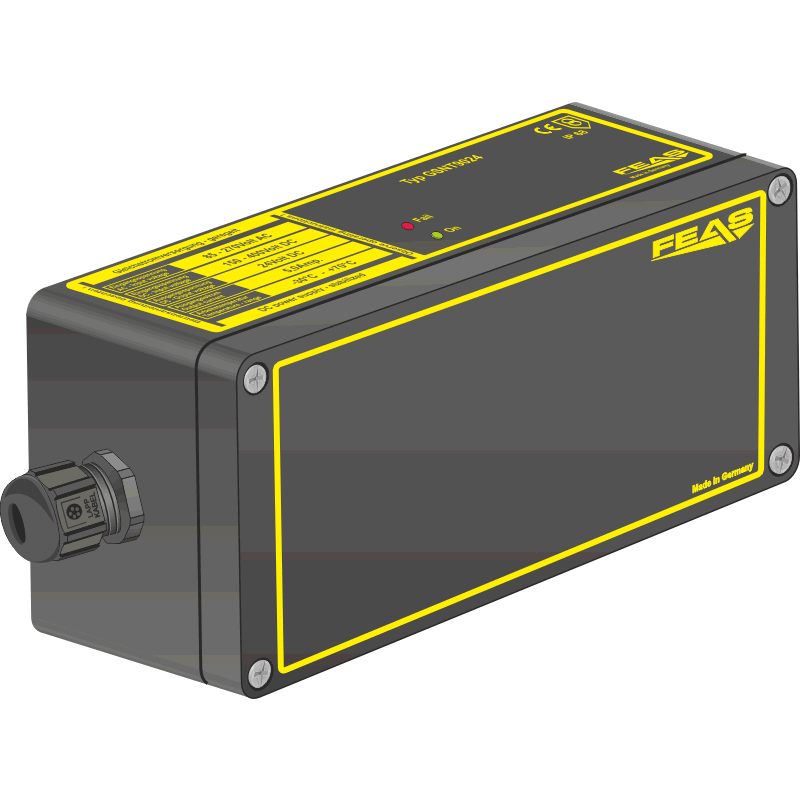

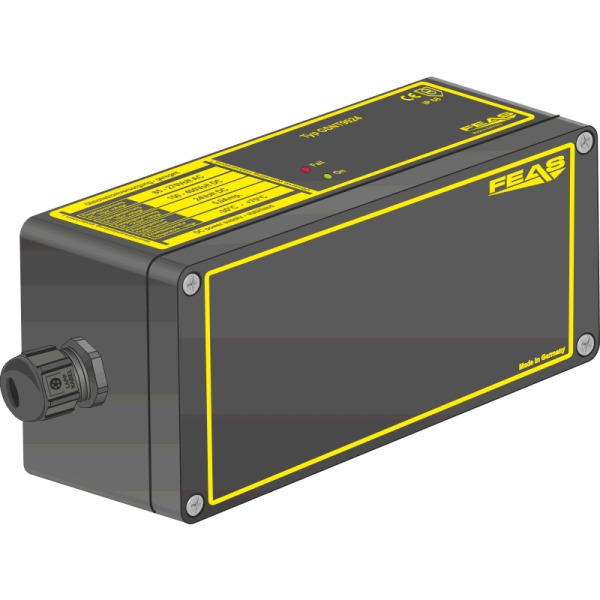

Switch mode power supply GSNT9024

Price per unit:

€256.70 *

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity	Unit price	Discount
To 2	€256.70 *	0 %
From 3	€251.57 *	2 %
From 5	€243.86 *	5 %
From 10	€238.73 *	7 %
From 20	€233.60 *	9 %
From 50	€231.03 *	10 %

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock

The switch mode power supplies of the GSNT90 series are powerful and robust devices to power... more

Close menu

Product information "Switch mode power supply GSNT9024"

The switch mode power supplies of the GSNT90 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 200% of rating, therefore this power supply is suitable for loads requiring high starting current.

Special protected (IP68)
Switch-mode controller with low residual ripple
Output separated according to VDE 0551
Overload- and open circuit protected
Short circuit proof
Operating status shown by LED
Parallel connection possible
Suitable for the tropics - epoxy resin casted
Safety acc. to VDE, EN, UL, CSA

Technical data more

Close menu

Technical data "Switch mode power supply GSNT9024"

Input voltage (VAC):	85 - 270 VAC (0-400 Hz)
Input voltage (VDC):	120 - 400 VDC
Output voltage:	24 VDC
Adjustment range:	22.5 - 30.0 VDC
Output current:	5.0 A
Power:	120.0 W
Efficiency:	88%
Residual ripple:	< 50 mVSS
Operating temperature range:	-30°C / +70°C

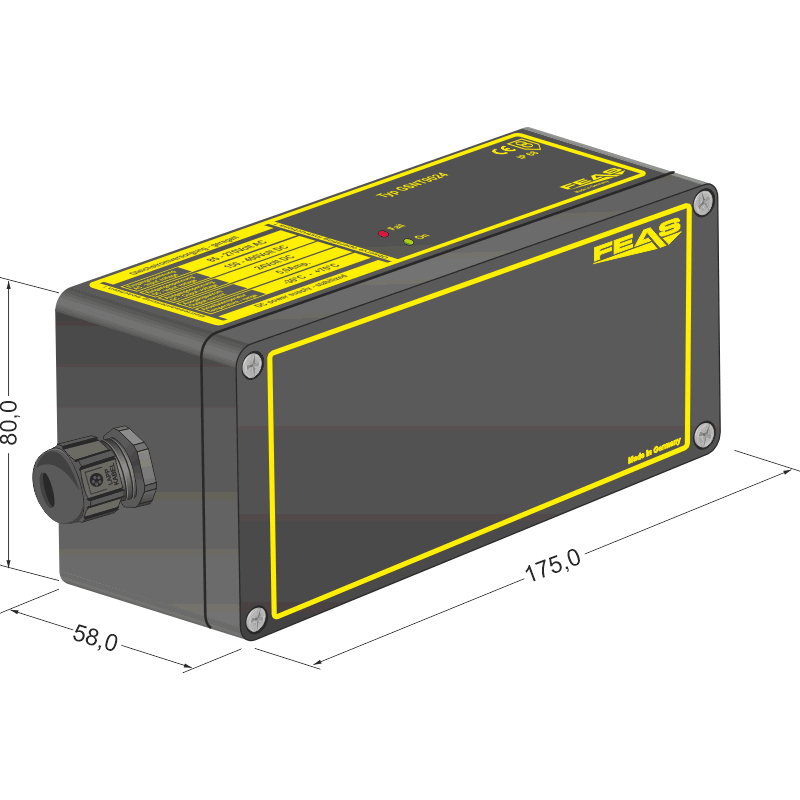

Dimensions (WxHxD):	175.0 x 80.0 x 58.0 mm
Weight:	1.20 kg
Mounting:	wall mounting with screws
