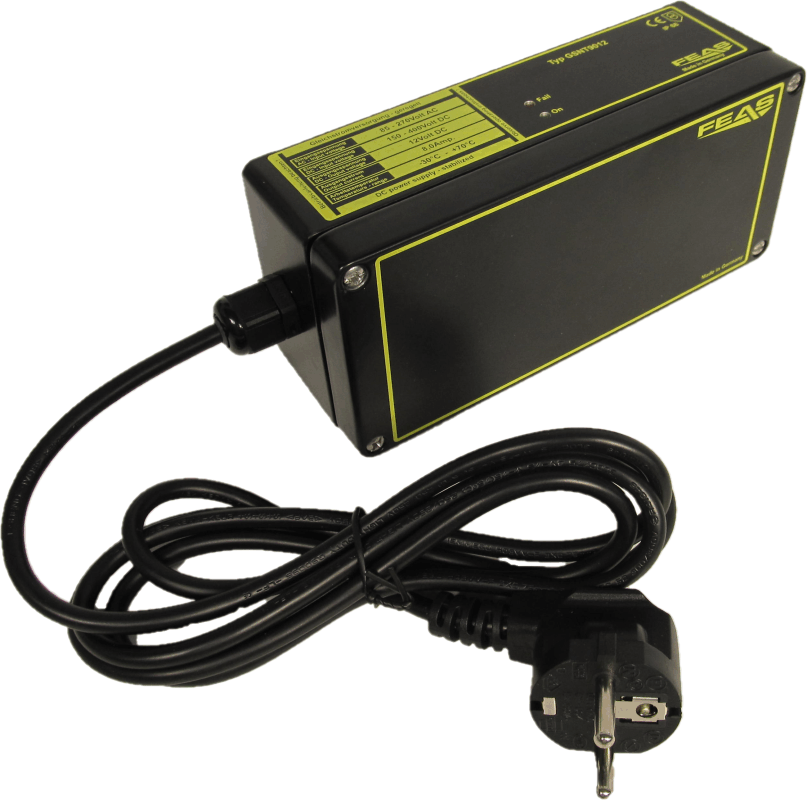

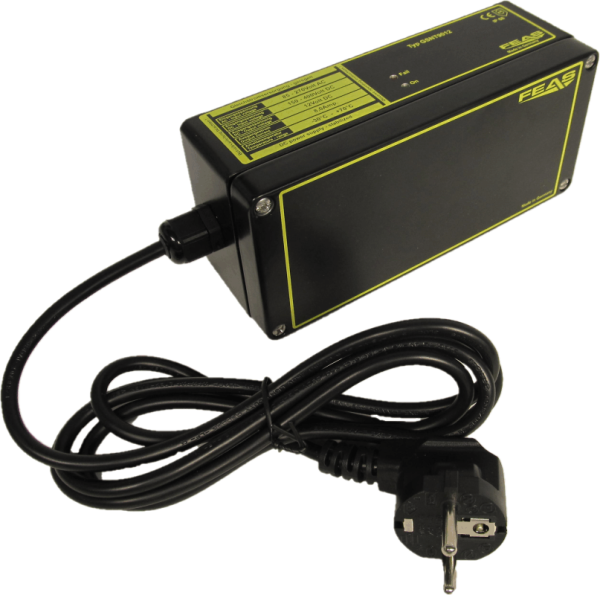

Switch mode power supply GSNT9024-S2 (with power cord)

FEAS article number 586626

Price per unit:
€305.60 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €305.60 * 0 %
From 3 €299.49 * 2 %
From 5 €290.32 * 5 %
From 10 €284.21 * 7 %
From 20 €278.10 * 9 %
From 50 €275.04 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
The switch mode power supplies of the GSNT90 series are powerful and robust devices to power... more
Product information "Switch mode power supply GSNT9024-S2 (with power cord)"
The switch mode power supplies of the GSNT90 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 200% of rating, therefore this power supply is suitable for loads requiring high starting current.
  • Enclosure fulfils protection class IP68
  • Aluminium housing
  • Adjustable output voltage
  • Switching regulator with low residual ripple
  • Output potential-free according to VDE 0551
  • Overload and no-load protection
  • Short-circuit proof
  • LED operating indicator
  • Can be connected in parallel
  • Suitable for use in the tropics due to cast resin encapsulation
  • Safety according to VDE, EN, UL CSA
Technical data more
Technical data "Switch mode power supply GSNT9024-S2 (with power cord)"
Input voltage (VAC): 85 - 270 VAC (0-400 Hz)
Input voltage (VDC): 120 - 400 VDC
Output voltage: 24 VDC
Adjustment range: 22.5 - 30.0 VDC
Output current: 5.0 A
Power: 120.0 W
Efficiency: 88%
Residual ripple: < 50 mVSS
Operating temperature range: -30°C / +70°C
Dimensions (WxHxD): 175.0 x 80.0 x 58.0 mm
Weight: 1.20 kg
Mounting: wall mounting with screws
Downloads "Switch mode power supply GSNT9024-S2 (with power cord)"

Manual GSNT90 (484,2 KB)

Operating instructions for power supplies of the series GSNT90

Öffnen/Herunterladen

Data sheet GSNT9024 (169,2 KB)

Technical data for power supply GSNT9024

Öffnen/Herunterladen

Product specification GSNT9024 (193,6 KB)

Further information about power supply GSNT9024

Öffnen/Herunterladen

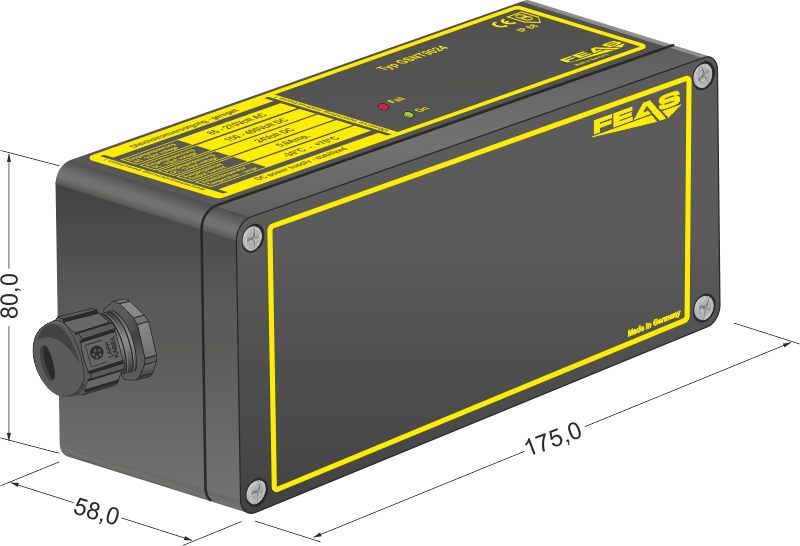

Dimensions "Switch mode power supply GSNT9024-S2 (with power cord)"
Dimensions Switch mode power supply GSNT9024-S2 (with power cord)
