Switch mode power supply SNT9124
FEAS article number 586125
Price per unit:
€296.60 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €296.60 * | 0 % |
| From 3 | €290.67 * | 2 % |
| From 5 | €281.77 * | 5 % |
| From 10 | €275.84 * | 7 % |
| From 20 | €269.91 * | 9 % |
| From 50 | €266.94 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch mode power supplies of the SNT91 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT9124"
The switch mode power supplies of the SNT91 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 140% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Switch-mode controller with low residual ripple
- Output adjustable
- Boost with 140%
- Operating status shown by LED
- Parallel connection possible
- Short circuit proof
- Output protected against polarity reversal
- Overload- and open circuit protected
- Suitable for the tropics - epoxy resin casted
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Safety according to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT9124"
| Input voltage (VAC): | 85 - 270 VAC (44-66Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 23.0 - 30.0 VDC |
| Output current: | 6.0 A |
| Power: | 144.0 W |
| Efficiency: | max. 92% |
| Residual ripple: | < 25 mVrms |
| Operating temperature range: | -40°C / +80°C |

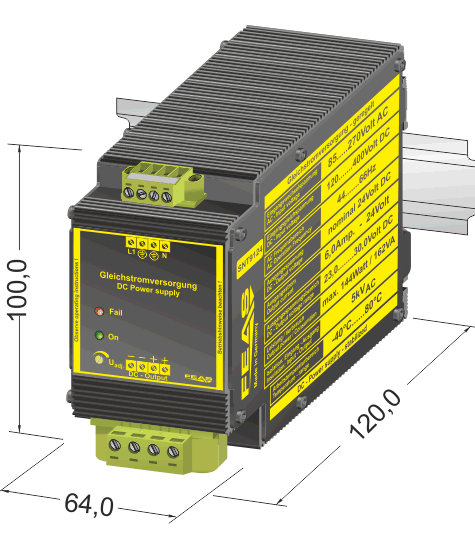

| Dimensions (WxHxD): | 64.0 x 100.0 x 120.0 mm |
| Weight: | 1.60 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Switch mode power supply SNT9124"
|
Product specification SNT9124 (510,4 KB) Further information about power supply SNT 9124 |
Öffnen/Herunterladen | |
|
Manual SNT91 (1,0 MB) Operating instructions for power supplies of the series SNT91 |
Öffnen/Herunterladen | |
|
Data sheet SNT9124 (382,0 KB) Technical data for power supply SNT9124 |
Öffnen/Herunterladen |
