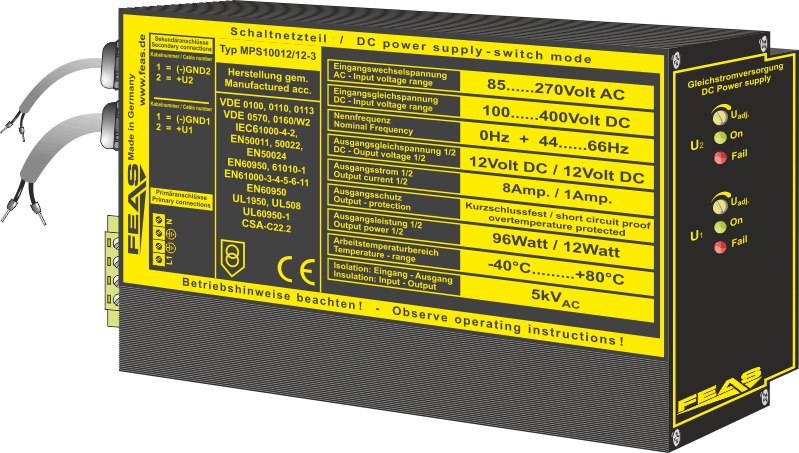

Switch mode power supply MPS10012/12-3
FEAS article number 5831173
Price per unit:
€459.90 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €459.90 * | 0 % |
| From 3 | €450.70 * | 2 % |
| From 5 | €436.91 * | 5 % |
| From 10 | €427.71 * | 7 % |
| From 20 | €418.51 * | 9 % |
| From 50 | €413.91 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch-mode power supplies of the MPS100 series are powerful and robust devices to power... more
Product information "Switch mode power supply MPS10012/12-3"
The switch-mode power supplies of the MPS100 series are powerful and robust devices to power sensitive loads in a rough industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this model can be adjusted. The output current can rise up to 150% of rating, therefore this power supply is suitable for loads requiring high starting currents.
- Primary connection terminal 2.5mm²
- Secondary connection cable
- Switch-mode controller with low residual ripple
- Output adjustable
- Boost with 150% INominal
- 2 galvanically isolated outputs
- Adverse voltage possible
- Operating status shown by LED
- 19” rack mounting (3RU 8HP)
- Parallel connection possible
- Short circuit proof
- Overload- and open circuit protected
- Suitable for the tropics - epoxy resin casted
- Output separated according to VDE 0570
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Safety according to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply MPS10012/12-3"
| Input voltage (VAC): | 85 - 270 VAC (0-400 Hz) |
| Input voltage (VDC): | 100 - 400 VDC |
| Output voltages: | 12 VDC and 12 VDC |
| Adjustment ranges: | 10.0 - 15.5 VDC and 10.0 - 15.5 VDC |
| Output currents: | 8.0 A and 1.0 A |
| Power: | 96 W and 12 W |
| Efficiency: | 88% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -40°C / +80°C |

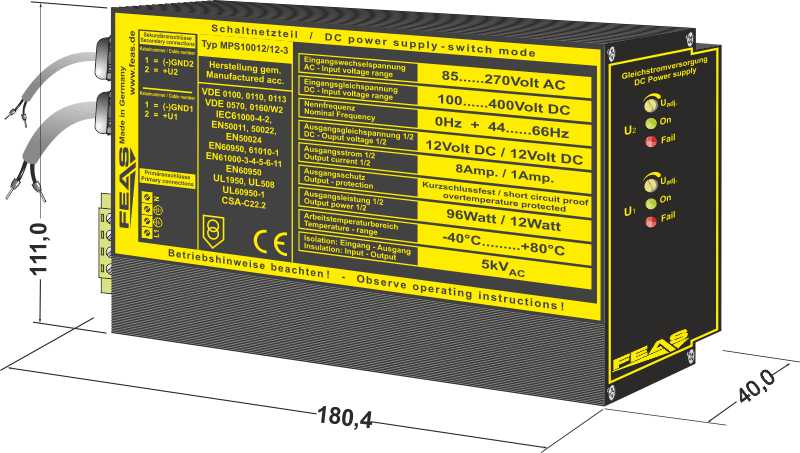

| Dimensions (WxHxD): | 180.4 x 111.0 x 40.0 mm |
| Weight: | 1.25 kg |
| Mounting: | 19"-rack (3RU 8HP), wall mounting possible |
Downloads "Switch mode power supply MPS10012/12-3"
|
Data sheet MPS10012/12 (330,4 KB) Technical data for power supply MPS10012/12 |
Öffnen/Herunterladen | |
|
Manual MPS100 Twinvolt (320,2 KB) Operating instructions for power supplies of the series MPS100 Twinvolt |
Öffnen/Herunterladen | |
|
Product specification MPS10012/12 (226,3 KB) Further information about power supply MPS10012/12 |
Öffnen/Herunterladen |
