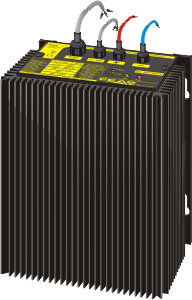

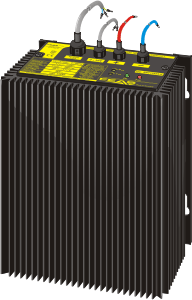

Switch mode power supply SNT12512-K (0-10V)
FEAS article number 584415
Price per unit:
€731.70 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €731.70 * | 0 % |
| From 3 | €717.07 * | 2 % |
| From 5 | €695.12 * | 5 % |
| From 10 | €680.48 * | 7 % |
| From 20 | €665.85 * | 9 % |
| From 50 | €658.53 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The switch mode power supplies of the SNT125 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT12512-K (0-10V)"
The switch mode power supplies of the SNT125 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Boostfunction: 120% Iout up to 5min
- Device protection: shutdown on overtemperatur, automatic restart
- Integrated 0-10 V interface for controlling the output voltage (Dimmer)
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0570
- Overload- and open circuit protected
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT12512-K (0-10V)"
| Input voltage (VAC): | 85 - 270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 12 VDC |
| Adjustment range: | 10.0 - 15.5 VDC |
| Output current: | 35.0 A |
| Power nom./boost: | 420 W / 500 W |
| Efficiency: | >91% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -30°C / +70°C |

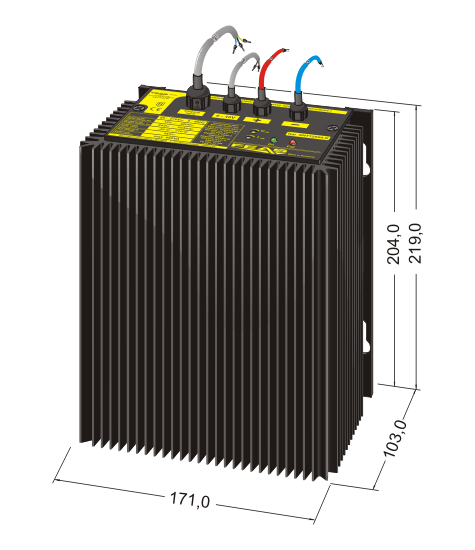

| Dimensions (WxHxD): | 171.0 x 219.0 x 103.0 mm |
| Weight: | 7.30 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT12512-K (0-10V)"
|
Product specification SNT12512-K (0-10V) (566,1 KB) Further information about power supply SNT12512-K (0-10V) |
Öffnen/Herunterladen | |
|
Data sheet SNT12512-K (0-10V) (447,8 KB) Technical data for power supply SNT12512-K (0-10V) |
Öffnen/Herunterladen | |
|
Manual SNT125-K (506,8 KB) Operating instructions for power supplies of the series SNT125-K |
Öffnen/Herunterladen |
