Switch mode power supply SNT12824-K
FEAS article number 582225
Price per unit:
€702.70 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €702.70 * | 0 % |
| From 3 | €688.65 * | 2 % |
| From 5 | €667.57 * | 5 % |
| From 10 | €653.51 * | 7 % |
| From 20 | €639.46 * | 9 % |
| From 50 | €632.43 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch mode power supplies of the SNT128 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT12824-K"
The switch mode power supplies of the SNT128 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Boostfunction: 120% Iout up to 5min
- Device protection: shutdown on overtemperatur, automatic restart
- Relaiy-contacts for remote monitoring
- Comprehensive microprocessor-controlled monitoring management with LED display
- IP68 - protective class
- Runs in 2-phase-operation without performance reduction
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- PFC acc. to IEC/EN 61000-3-2
- Overload- and open circuit protected
- Short circuit proof
- Parallel connection possible
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT12824-K"
| Input voltage (VAC): | 320 - 550 VAC (0-400 Hz) |
| Input voltage (VDC): | 450 - 780 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 22.5 - 30.6 VDC |
| Output current: | 20.0 A |
| Power nom./boost: | 480.0 W |
| Efficiency: | 91% |
| Residual ripple: | < 50 mVSS |
| Operating temperature range: | -30°C / +70°C |

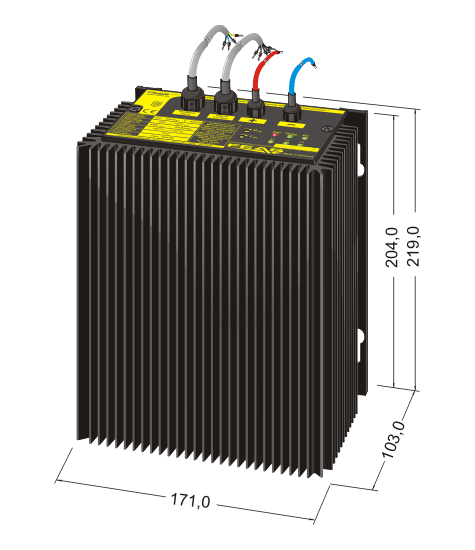

| Dimensions (WxHxD): | 171.0 x 249.0 x 103.0 mm |
| Weight: | 7.00 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT12824-K"
|
Product specification SNT12824-K (224,7 KB) Further information about power supply SNT12824-K |
Öffnen/Herunterladen | |
|
Data sheet SNT12824-K (130,1 KB) Technical data for power supply SNT12824-K |
Öffnen/Herunterladen | |
|
Manual SNT128-K (629,7 KB) Operating instructions for power supplies of the series SNT128-K |
Öffnen/Herunterladen |
