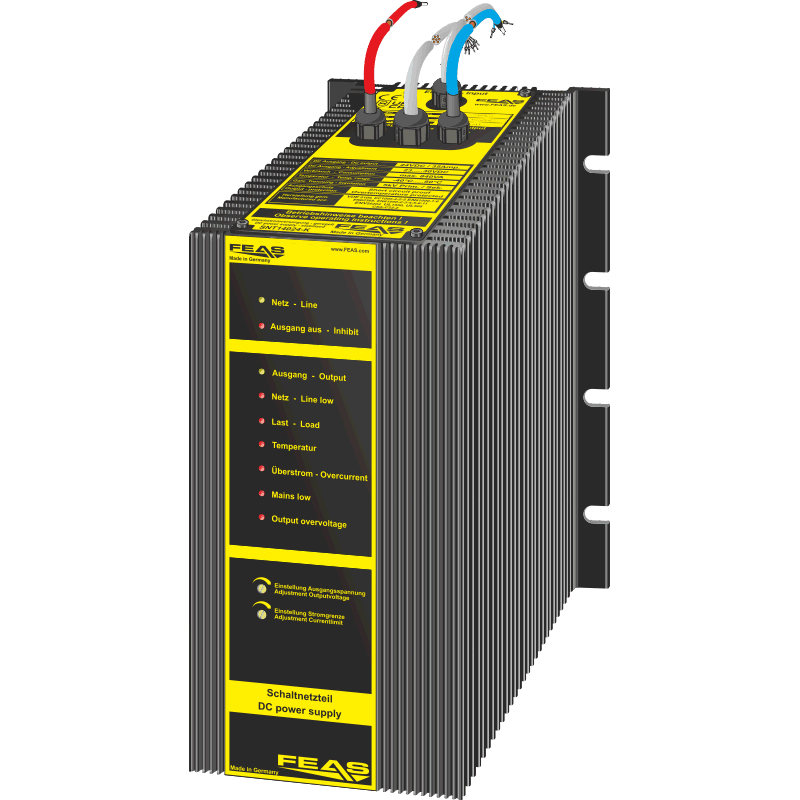

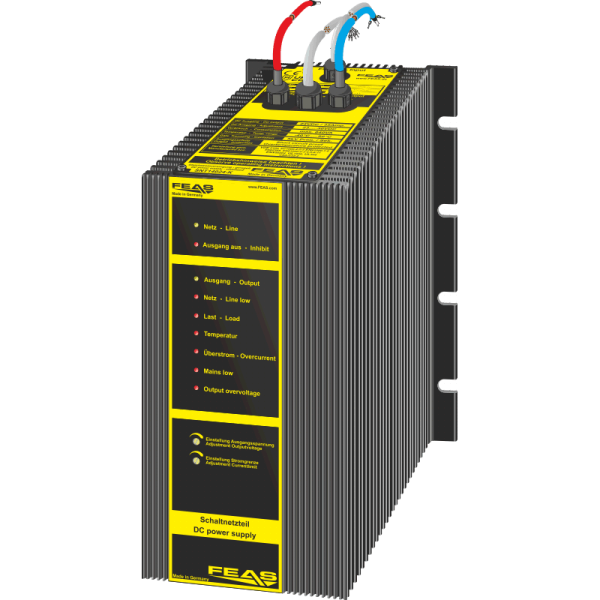

Switch mode power supply SNT14024-K
FEAS article number 585227
Price per unit:
€1,431.60 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €1,431.60 * | 0 % |
| From 3 | €1,402.97 * | 2 % |
| From 5 | €1,360.02 * | 5 % |
| From 10 | €1,331.39 * | 7 % |
| From 20 | €1,302.76 * | 9 % |
| From 50 | €1,288.44 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The switch mode power supplies of the SNT140 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT14024-K"
The switch mode power supplies of the SNT140 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Version with cable connection
- Boostfunction: 120% Iout
- Fuse Mode: safe, permanent shutdown on overload, adjustable
- Device protection: shutdown on overtemperatur, automatic restart
- IP65-IP69K* - protective class (*IP69K, if the potentiometer openings are reliably sealed)
- Standby-Function: turn off the output
- Relaiy-contacts for remote monitoring
- Integrated 0-10 V interface for controlling the output voltage (Dimmer)
- Comprehensive microprocessor-controlled monitoring management with LED display
- Parallel connection possible
- Output protected against polarity reversal
- Overload- and open circuit protected
- Short circuit proof
- Suitable for the tropics - epoxy resin casted
- vibration proof
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT14024-K"
| Input voltage (VAC): | 85 - 270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 23.0 - 30.0 VDC |
| Output current: | 35.0 A |
| Power nom./boost: | 840 W / 1008 W |
| Efficiency: | 95% |
| Residual ripple: | < 100mVrms |
| Operating temperature range: | -40°C / +80°C |

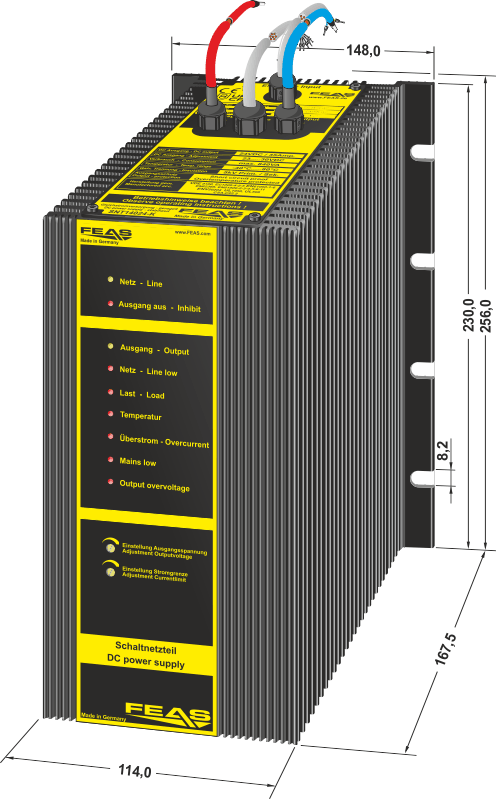

| Dimensions (WxHxD): | 148.0 x 256.0 x 167.5 mm |
| Weight: | 11.0 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT14024-K"
|
Product specification SNT14024-K (328,3 KB) Further information about power supply SNT14024-K |
Öffnen/Herunterladen | |
|
Data sheet SNT14024-K (340,8 KB) Technical data for power supply SNT14024-K |
Öffnen/Herunterladen | |
|
Manual SNT140-K (1,6 MB) Operating instructions for power supplies of the series SNT140-K |
Öffnen/Herunterladen |
