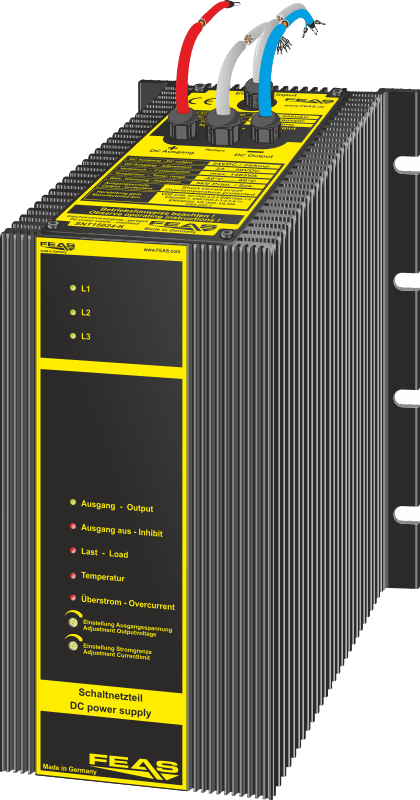

Switch mode power supply SNT15024-K
FEAS article number 581913
Price per unit:
€1,385.10 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €1,385.10 * | 0 % |
| From 3 | €1,357.40 * | 2 % |
| From 5 | €1,315.84 * | 5 % |
| From 10 | €1,288.14 * | 7 % |
| From 20 | €1,260.44 * | 9 % |
| From 50 | €1,246.59 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The 3-phase switch mode power supplies of the SNT150 series are powerful and robust... more
Product information "Switch mode power supply SNT15024-K"
The 3-phase switch mode power supplies of the SNT150 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 150% of rating, therefore this power supply is suitable for loads requiring high starting current.
- 1 to 3 phase operation with phase monitoring L1, L2, L3
- Boost: max. 150%, 140% Iout up to 1 min, 125% up to 5 min
- Fuse Mode: safe, permanent shutdown on overload, adjustable
- Current limitation: adjustable to 0.5 to 1.5 of the nominal current
- Device protection: shutdown on overtemperatur, automatic restart
- Standby-Function: turn off the output
- Relaiy-contacts for remote monitoring (overtemperature, overload, phase failure, short circuit, standby)
- Integrated 0-10 V interface for controlling the output voltage (Dimmer)
- Connection via cable
- IP65-IP69K* - protective class (*IP69K, if the potentiometer openings are reliably sealed)
- Comprehensive microprocessor-controlled monitoring management with LED displays
- Parallel connection possible
- Output protected against polarity reversal
- Overload- and open circuit protected
- Short circuit proof
- Suitable for the tropics - epoxy resin casted
- vibration proof
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 62368-1)
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT15024-K"
| Input voltage (VAC): | 320 - 550 VAC 44-66 Hz) |
| Input voltage (VDC): | 450 - 780 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 23.0 - 30.0 VDC |
| Output current: | 25.0 A |
| Power nom./boost: | 600 W / 900 W |
| Efficiency: | 93% |
| Residual ripple: | < 50 mVrms |
| Operating temperature range: | -40°C / +80°C |
| Dimensions (WxHxD): | 148.0 x 256.0 x 167.5 mm |
| Weight: | 10.2 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT15024-K"
|
Manual SNT150-K (1,5 MB) Operating instructions for power supplies of the series SNT150-K |
Öffnen/Herunterladen | |
|
Data sheet SNT15024-K (338,3 KB) Technical data for power supply SNT15024-K |
Öffnen/Herunterladen | |
|
Product specification SNT15024-K (357,3 KB) Further information about power supply SNT15024-K |
Öffnen/Herunterladen |
