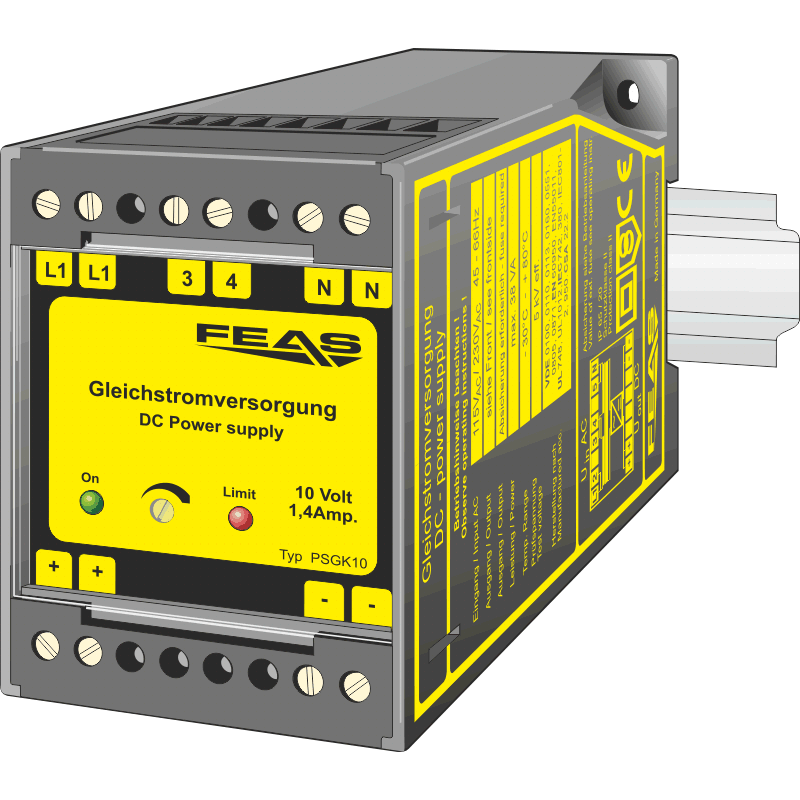

Power supply PSGK10

FEAS article number 58010

Price per unit:
€170.90 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €170.90 * 0 %
From 3 €167.48 * 2 %
From 5 €162.36 * 5 %
From 10 €158.94 * 7 %
From 20 €155.52 * 9 %
From 50 €153.81 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
The power supplies of the PSGK series are powerful and robust devices with linear controlled... more
Product information "Power supply PSGK10"
The power supplies of the PSGK series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained.
  • Linear regulated output voltage
  • Output adjustable
  • Operating status shown by LED
  • Parallel connection possible
  • Short circuit proof
  • Overload- and open circuit protected
  • Output protected against polarity reversal
  • Suitable for the tropics - epoxy resin casted
  • Output separated according to VDE 0551
  • Extra low safety potential PELV (EN 60204), SELV (EN 60950)
  • Safety according to VDE, EN, UL, CSA
Technical data more
Technical data "Power supply PSGK10"
Input voltage (VAC): 115 VAC / 230 VAC (45-66 Hz)
Output voltage: 10 VDC
Adjustment range: ± 5% UNom
Output current: 1.4 A
Power: 14.0 W
Efficiency: 32%
Residual ripple: < 2mV
Operating temperature range: -30°C / +80°C
Dimensions (WxHxD): 55.0 x 75.0 x 110.0 mm
Weight: 0.84 kg
Mounting: On rails acc. to DIN 46277, wall mounting possible
Downloads "Power supply PSGK10"

Product specification PSGK10 (251,9 KB)

Further information about power supply PSGK10

Öffnen/Herunterladen

Manual PSGK (68,5 KB)

Operating instructions for power supplies of the series PSGK

Öffnen/Herunterladen

Data sheet PSGK10 (192,4 KB)

Technical data for power supply PSGK10

Öffnen/Herunterladen

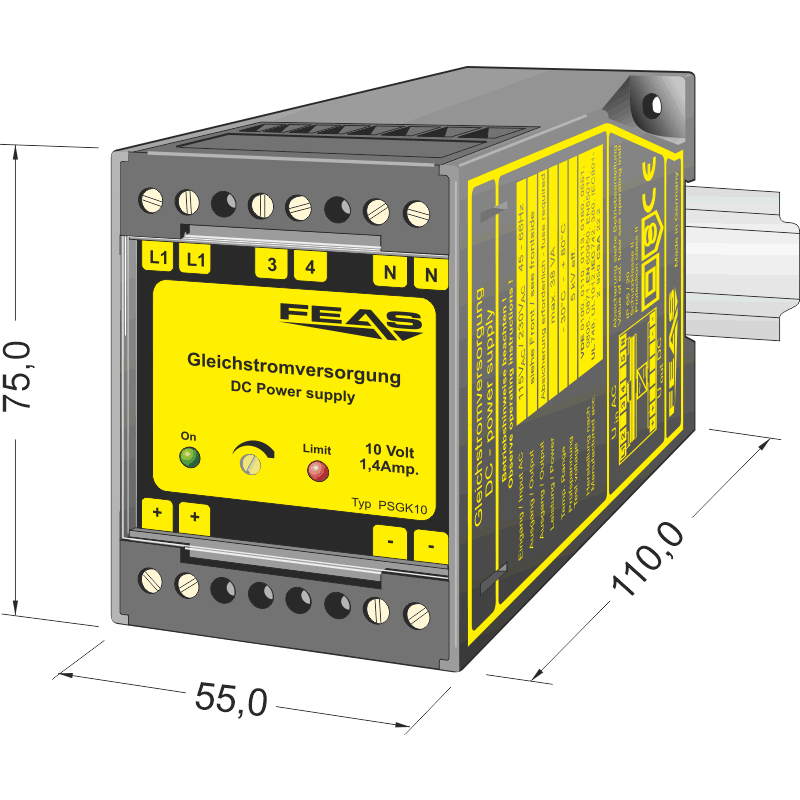

Dimensions "Power supply PSGK10"
Dimensions Power supply PSGK10
