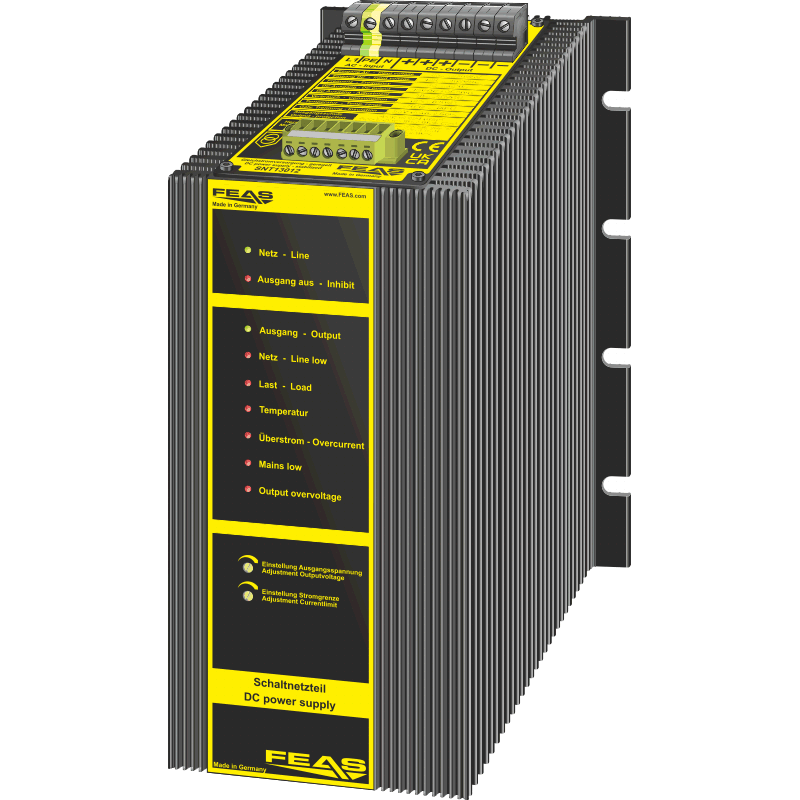

Switch mode power supply SNT13012
FEAS article number 585212
Price per unit:
€1,350.20 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €1,350.20 * | 0 % |
| From 3 | €1,323.20 * | 2 % |
| From 5 | €1,282.69 * | 5 % |
| From 10 | €1,255.69 * | 7 % |
| From 20 | €1,228.68 * | 9 % |
| From 50 | €1,215.18 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The switch mode power supplies of the SNT130 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT13012"
The switch mode power supplies of the SNT130 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Boostfunction: 120% Iout
- Fuse Mode: safe, permanent shutdown on overload, adjustable
- Device protection: shutdown on overtemperatur, automatic restart
- Standby-Function: turn off the output
- Relaiy-contacts for remote monitoring
- Integrated 0-10 V interface for controlling the output voltage (Dimmer)
- Comprehensive microprocessor-controlled monitoring management with LED display
- Parallel connection possible
- Output protected against polarity reversal
- Overload- and open circuit protected
- Short circuit proof
- Suitable for the tropics - epoxy resin casted
- vibration proof
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT13012"
| Input voltage (VAC): | 85 - 270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 12 VDC |
| Adjustment range: | 10.0 - 15.0 VDC |
| Output current: | 45.0 A |
| Power nom./boost: | 540 W / 648 W |
| Efficiency: | 95% |
| Residual ripple: | < 100mVrms |
| Operating temperature range: | -40°C / +80°C |

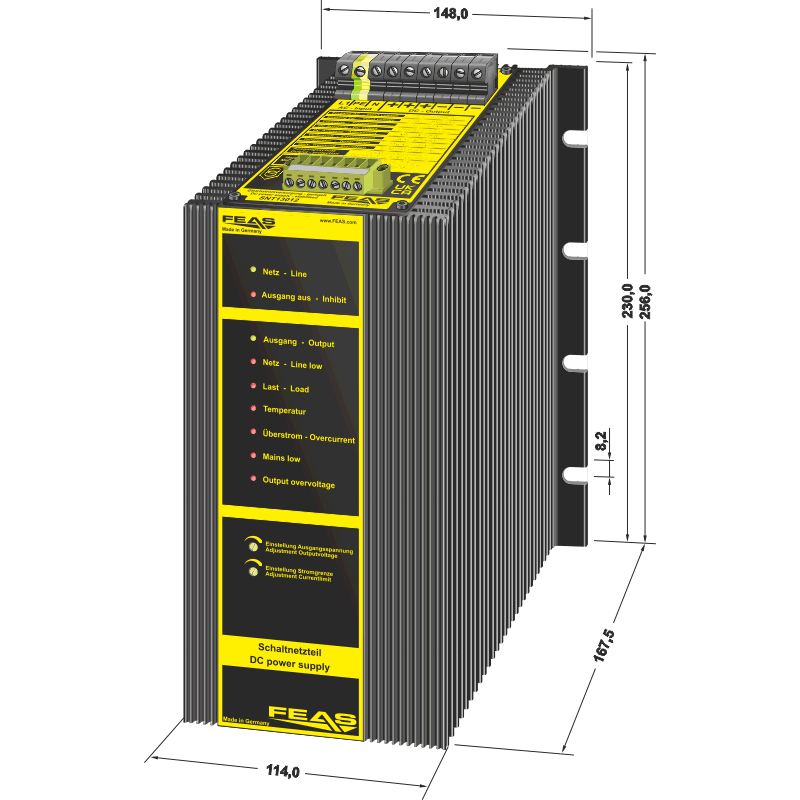

| Dimensions (WxHxD): | 148.0 x 256.0 x 167.5 mm |
| Weight: | 10.5 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT13012"
|
Product specification SNT13012 (326,7 KB) Further information about power supply SNT13012 |
Öffnen/Herunterladen | |
|
Data sheet SNT13012 (341,6 KB) Technical data for power supply SNT13012 |
Öffnen/Herunterladen | |
|
Manual SNT130 (1,6 MB) Operating instructions for power supplies of the series SNT130 |
Öffnen/Herunterladen |
