Switch mode power supply SNT7012
FEAS article number 586212
Price per unit:
€445.20 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €445.20 * | 0 % |
| From 3 | €436.30 * | 2 % |
| From 5 | €422.94 * | 5 % |
| From 10 | €414.04 * | 7 % |
| From 20 | €405.13 * | 9 % |
| From 50 | €400.68 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch mode power supplies of the SNT70 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT7012"
The switch mode power supplies of the SNT70 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 150% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Switch mode power supply with low residual ripple
- Boostfunction: 150% INominal up to 30s
- Fuse Mode: safe, permanent shutdown on overload, adjustable
- Device protection: shutdown on overtemperatur, automatic restart
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Overload- and open circuit protected
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT7012"
| Input voltage (VAC): | 85 - 270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 12 VDC |
| Adjustment range: | 10.0 - 15.5 VDC |
| Output current: | 15.0 A |
| Power nom./boost: | 180,0 W |
| Efficiency: | 90% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -40°C / +70°C |

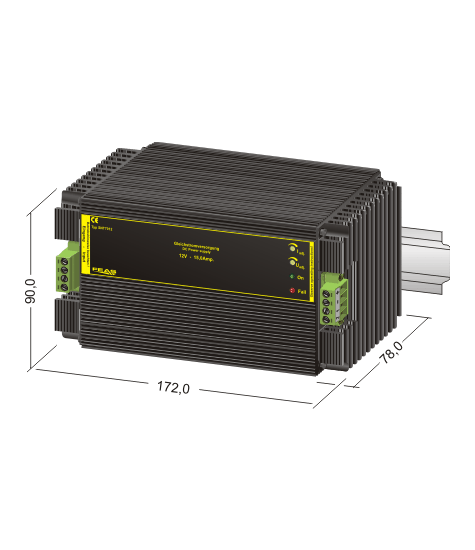

| Dimensions (WxHxD): | 172.0 x 90.0 x 78.0 mm |
| Weight: | 2.30 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT7012"
|
Manual SNT70 (644,3 KB) Operating instructions for power supplies of the series SNT70 |
Öffnen/Herunterladen | |
|
Product specification SNT7012 (284,1 KB) Further information about power supply SNT7012 |
Öffnen/Herunterladen | |
|
Data sheet SNT7012 (147,3 KB) Technical data for power supply SNT7012 |
Öffnen/Herunterladen |
