Power supply GSLC122
FEAS article number 583712
Price per unit:
€174.20 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €174.20 * | 0 % |
| From 3 | €170.72 * | 2 % |
| From 5 | €165.49 * | 5 % |
| From 10 | €162.01 * | 7 % |
| From 20 | €158.52 * | 9 % |
| From 50 | €156.78 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The power supplies of the GSLC2 series are powerful and robust devices to power electrical... more
Product information "Power supply GSLC122"
The power supplies of the GSLC2 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a plastics housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a plastics housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply GSLC122"
| Input voltage (VAC): | 115 VAC / 230 VAC (45-66 Hz) |
| Output voltage: | 12 VDC |
| Output current: | 3.0 A |
| Power: | 36.0 W |
| Efficiency: | 86% |
| Residual ripple: | < 3% |
| Operating temperature range: | -30°C / +80°C |

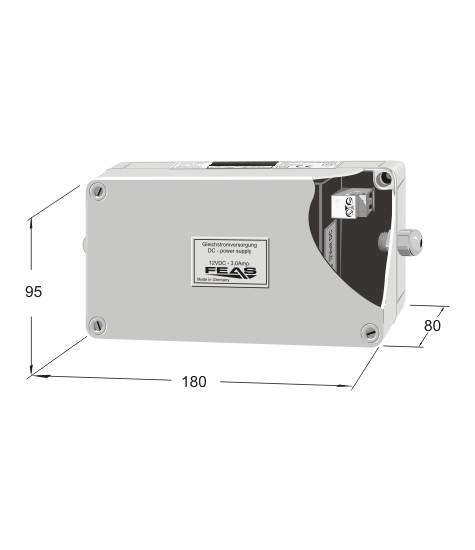

| Dimensions (WxHxD): | 212.0 x 95.0 x 82.0 mm |
| Weight: | 1.42 kg |
| Mounting: | wall mounting with screws |
Downloads "Power supply GSLC122"
|
Product specification GSLC122 (150,4 KB) Further information about power supply GSLC122 |
Öffnen/Herunterladen | |
|
Manual GSLC2 (683,8 KB) Operating instructions for power supplies of the series GSLC2 |
Öffnen/Herunterladen | |
|
Data sheet GSLC122 (61,9 KB) Technical data for power supply GSLC122 |
Öffnen/Herunterladen |
