Power supply PSU18012-W
FEAS article number 58551201
Price per unit:
€231.40 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €231.40 * | 0 % |
| From 3 | €226.77 * | 2 % |
| From 5 | €219.83 * | 5 % |
| From 10 | €215.20 * | 7 % |
| From 20 | €210.57 * | 9 % |
| From 50 | €208.26 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The power supplies of the PSU180 series are powerful and robust devices to power electrical... more
Product information "Power supply PSU18012-W"
The power supplies of the PSU180 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PSU18012-W"
| Input voltage (VAC): | 115 VAC / 230 VAC (45-66 Hz) |
| Output voltage: | 12 VDC |
| Output current: | 15.0 A |
| Power: | 180.0 W |
| Efficiency: | 90% |
| Residual ripple: | < 2% |
| Operating temperature range: | -30°C / +70°C |

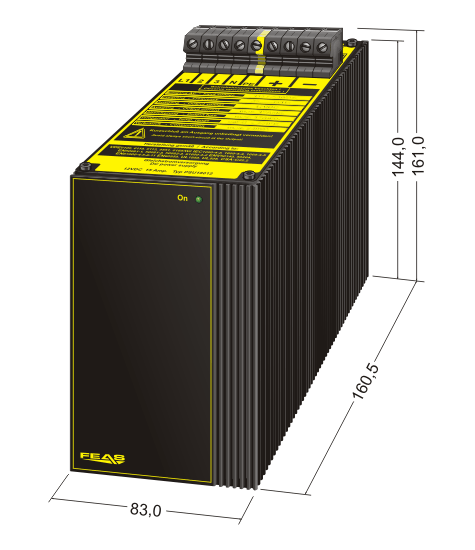

| Dimensions (WxHxD): | 83.0 x 161.0 x 160.5 mm |
| Weight: | 5.70 kg |
| Mounting: | wallmounting with screws |
Downloads "Power supply PSU18012-W"
|
Product specification PSU18012-W (214,8 KB) Further information about power supply PSU18012-W |
Öffnen/Herunterladen | |
|
Data sheet PSU180-W (195,4 KB) Technical data for power supply PSU180-W |
Öffnen/Herunterladen | |
|
Manual PSU180 / PSU200 (390,4 KB) Operating instructions for power supplies of the series PSU180 / PSU200 |
Öffnen/Herunterladen |
