Power supply PS2LC123
FEAS article number 58117
Price per unit:
€129.40 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €129.40 * | 0 % |
| From 3 | €126.81 * | 2 % |
| From 5 | €122.93 * | 5 % |
| From 10 | €120.34 * | 7 % |
| From 20 | €117.75 * | 9 % |
| From 50 | €116.46 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The power supplies of the PS2LC3 series are powerful and robust devices to power electrical... more
Product information "Power supply PS2LC123"
The power supplies of the PS2LC3 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a stable plastics housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a stable plastics housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Overload- and open circuit protected
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PS2LC123"
| Input voltage (VAC): | 400 VAC (45-66 Hz) |
| Output voltage: | 12 VDC |
| Output current: | 6.0 A |
| Power: | 72.0 W |
| Efficiency: | 86% |
| Residual ripple: | < 3% |
| Operating temperature range: | -30°C / +80°C |

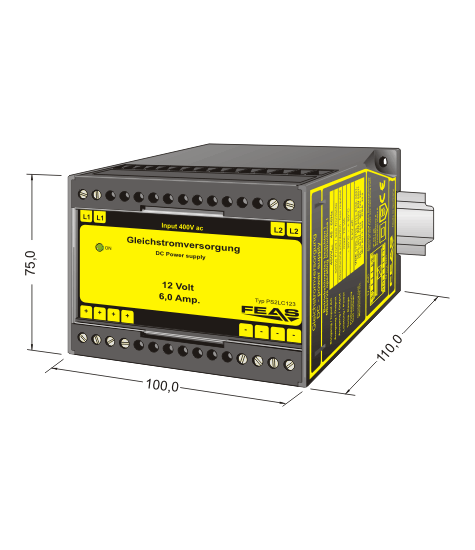

| Dimensions (WxHxD): | 100.0 x 75.0 x 110.0 mm |
| Weight: | 1.74 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Power supply PS2LC123"
|
Product specification PS2LC123 (217,4 KB) Further information about power supply PS2LC123 |
Öffnen/Herunterladen | |
|
Manual PS2LC3 (198,3 KB) Operating instructions for power supplies of the PS2LC3 series |
Öffnen/Herunterladen | |
|
Data sheet PS2LC3 (323,1 KB) Technical data for power supplies of the PS2LC3-series |
Öffnen/Herunterladen |
