Switch mode power supply SNT6015
FEAS article number 584915
Price per unit:
€208.80 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €208.80 * | 0 % |
| From 3 | €204.62 * | 2 % |
| From 5 | €198.36 * | 5 % |
| From 10 | €194.18 * | 7 % |
| From 20 | €190.01 * | 9 % |
| From 50 | €187.92 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch-mode power supplies of the SNT60 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT6015"
The switch-mode power supplies of the SNT60 series are powerful and robust devices to power sensitive loads in a rough industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this model can be adjusted. This power supply is optimally suited for loads requiring high starting currents.
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Overload- and open circuit protected
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT6015"
| Input voltage (VAC): | 85 - 270 VAC (0-400 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 15 VDC |
| Adjustment range: | 10.0 - 15.5 VDC |
| Output current: | 7.0 A |
| Power: | 105.0 W |
| Efficiency: | 87% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -30°C / +80°C |

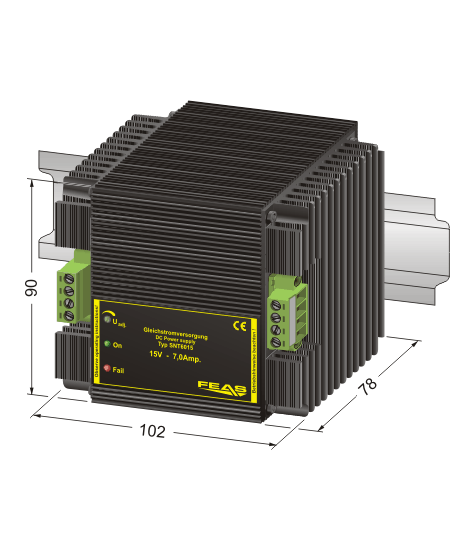

| Dimensions (WxHxD): | 102.0 x 90.0 x 78.0 mm |
| Weight: | 1.06 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Switch mode power supply SNT6015"
|
Manual SNT60 (615,5 KB) Operating instructions for power supplies of the series SNT60 |
Öffnen/Herunterladen | |
|
Data sheet SNT6015 (331,2 KB) Technical data for power supply SNT6015 |
Öffnen/Herunterladen | |
|
Product specification SNT6015 (272,1 KB) Further information about power supply SNT6015 |
Öffnen/Herunterladen |
