Price per unit:

€745.50 *

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity	Unit price	Discount
To 2	€745.50 *	0 %
From 3	€730.59 *	2 %
From 5	€708.23 *	5 %
From 10	€693.32 *	7 %
From 20	€678.41 *	9 %
From 50	€670.95 *	10 %

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

available within 10 days

The power supplies of the PS3W750 series are powerful and robust devices with linear controlled... more

Close menu

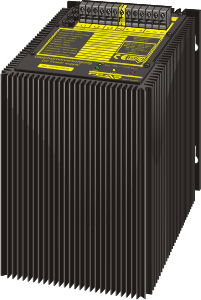

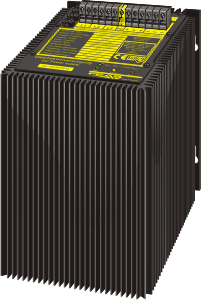

Product information "Power supply PS3W75015"

The power supplies of the PS3W750 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained.

For 3 x 400VAC input voltage
Linear regulated output voltage
Operating status shown by LED
Parallel connection possible
Short circuit proof
Overload- and open circuit protected
suitable for the tropics - epoxy resin casted
Output separated according to VDE 0551
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Safety according to VDE, EN, UL, CSA

Technical data more

Close menu

Technical data "Power supply PS3W75015"

Input voltage (VAC):	3 x 400 VAC (45-66 Hz)
Output voltage:	15 VDC
Adjustment range:	-5% to +10% UNom
Output current:	30.0 A
Power:	450.0 W
Efficiency:	49%
Residual ripple:	< 25mV
Operating temperature range:	-30°C / +70°C
Dimensions (WxHxD):	171.0 x 254.0 x 215.0 mm
Weight:	19.4 kg
Mounting:	wallmounting with screws
