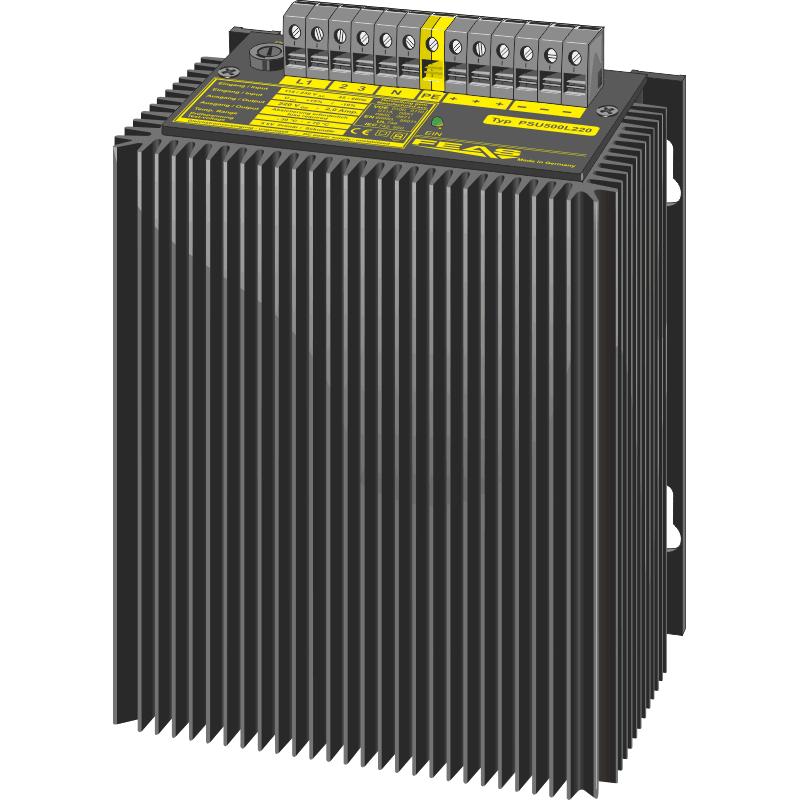

Power supply PSU500L220
FEAS article number 589132
Price per unit:
€419.70 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €419.70 * | 0 % |
| From 3 | €411.31 * | 2 % |
| From 5 | €398.72 * | 5 % |
| From 10 | €390.32 * | 7 % |
| From 20 | €381.93 * | 9 % |
| From 50 | €377.73 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The power supplies of the PSU500 series are powerful and robust devices to power electrical... more
Product information "Power supply PSU500L220"
The power supplies of the PSU500 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Simple wall mounting with screws
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Conforms to EMC and low voltage directive
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PSU500L220"
| Input voltage (VAC): | 115 VAC / 230 VAC (45-66 Hz) |
| Output voltage: | 220 VDC |
| Output current: | 2.0 A |
| Power: | 455.0 W |
| Efficiency: | 90% |
| Residual ripple: | < 2% |
| Operating temperature range: | -30°C / +70°C |

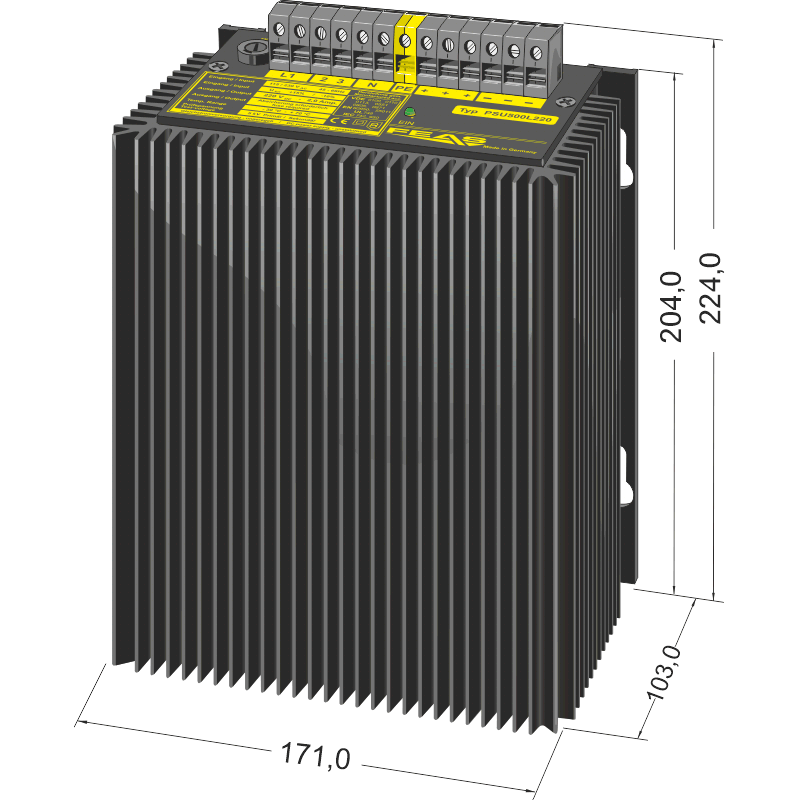

| Dimensions (WxHxD): | 171.0 x 224.0 x 103.0 mm |
| Weight: | 8.10 kg |
| Mounting: | wall mounting with screws |
Downloads "Power supply PSU500L220"
|
Manual PSU250-500L (94,2 KB) Operating instructions for power supplies of the series PSU250-500L |
Öffnen/Herunterladen | |
|
Data sheet PSU500L (83,4 KB) Technical data for power supply PSU500L |
Öffnen/Herunterladen | |
|
Product specification PSU500L220 (83,4 KB) Further information about power supply PSU500L220 |
Öffnen/Herunterladen |
