The power supplies of the PSW250 series are powerful and robust devices with linear controlled... more

Close menu

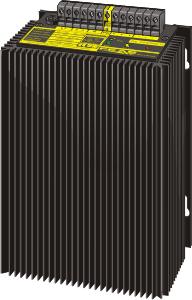

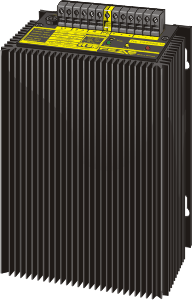

Product information "Power supply PSW500L24"

The power supplies of the PSW250 series are powerful and robust devices with linear controlled output voltage. Under assistance of linear regulation transistors, the smoothed DC voltage is converted into a highly stabilized output. The disadvantage of this circuit principle is the relative high loss of energy into heat. For this reason a maximum of 30% to 50% efficiency can be obtained.

Linear regulated output voltage
Operating status shown by LED
Parallel connection possible
Short circuit proof
Overload- and open circuit protected
suitable for the tropics - epoxy resin casted
Output separated according to VDE 0551
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Safety according to VDE, EN, UL, CSA

Technical data more

Close menu

Technical data "Power supply PSW500L24"

Input voltage (VAC):	115 VAC / 230 VAC (45-66 Hz)
Output voltage:	24 VDC
Adjustment range:	-5% to +5% UNom
Output current:	15.0 A
Power:	360.0 W
Efficiency:	56%
Residual ripple:	< 2mV
Operating temperature range:	-30°C / +70°C

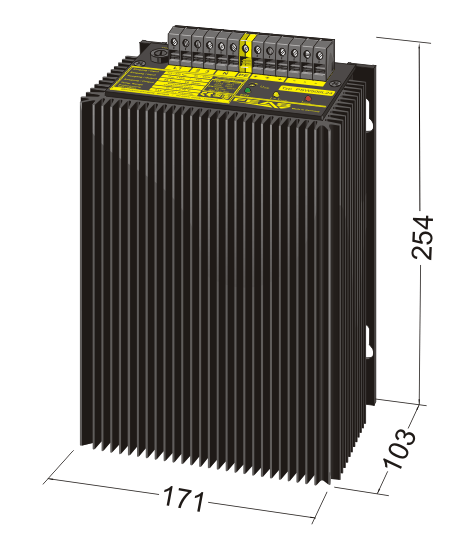

Dimensions (WxHxD):	171.0 x 254.0 x 103.0 mm
Weight:	9.0 kg
Mounting:	wallmounting with screws
