Power supply PSLC243
FEAS article number 58126
Price per unit:
€147.60 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €147.60 * | 0 % |
| From 3 | €144.65 * | 2 % |
| From 5 | €140.22 * | 5 % |
| From 10 | €137.27 * | 7 % |
| From 20 | €134.32 * | 9 % |
| From 50 | €132.84 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The power supplies of the PSLC3 series are powerful and robust devices to power electrical... more

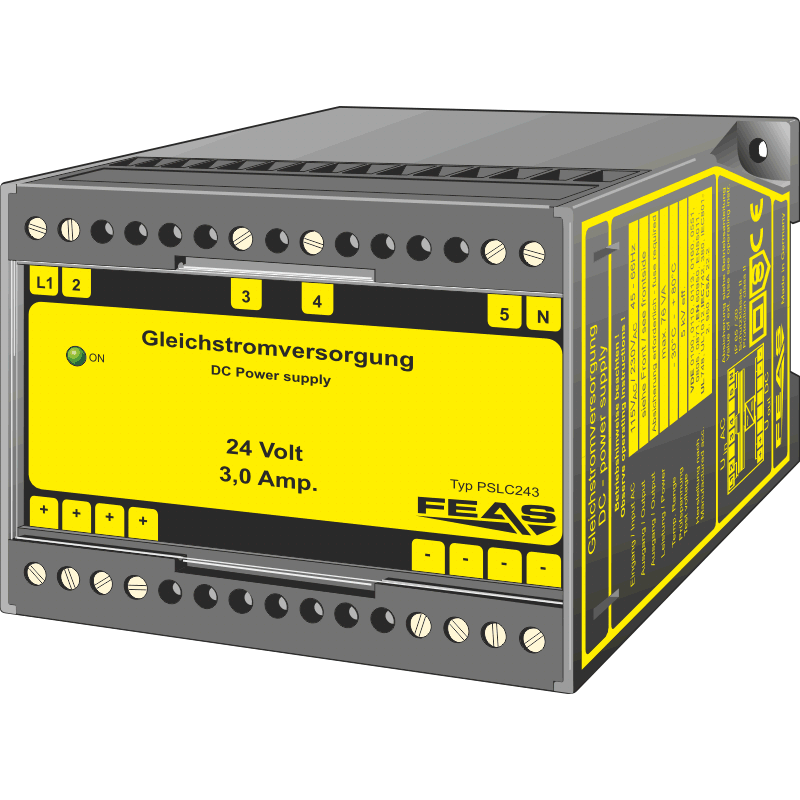

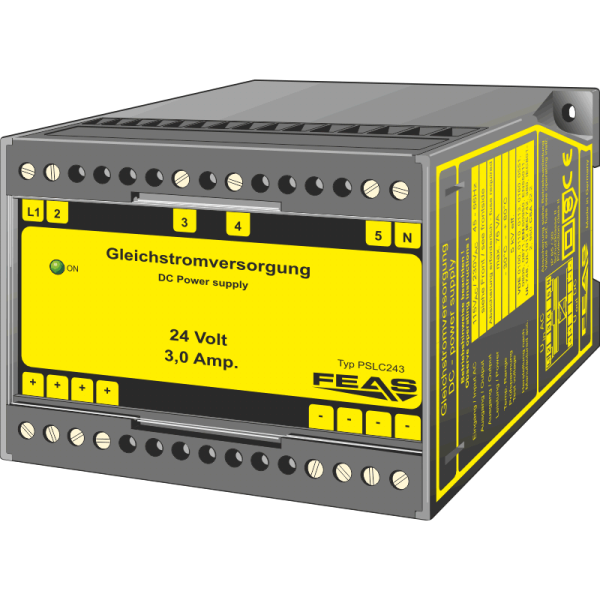

Product information "Power supply PSLC243"
The power supplies of the PSLC3 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a stable polycarbonate housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof.
Because of its robust design, casted in a stable polycarbonate housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Overload- and open circuit protected
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PSLC243"
| Input voltage (VAC): | 115 VAC / 230 VAC (45-66 Hz) |
| Output voltage: | 24 VDC |
| Output current: | 3.0 A |
| Power: | 72.0 W |
| Efficiency: | 86% |
| Residual ripple: | < 3% |
| Operating temperature range: | -30°C / +80°C |

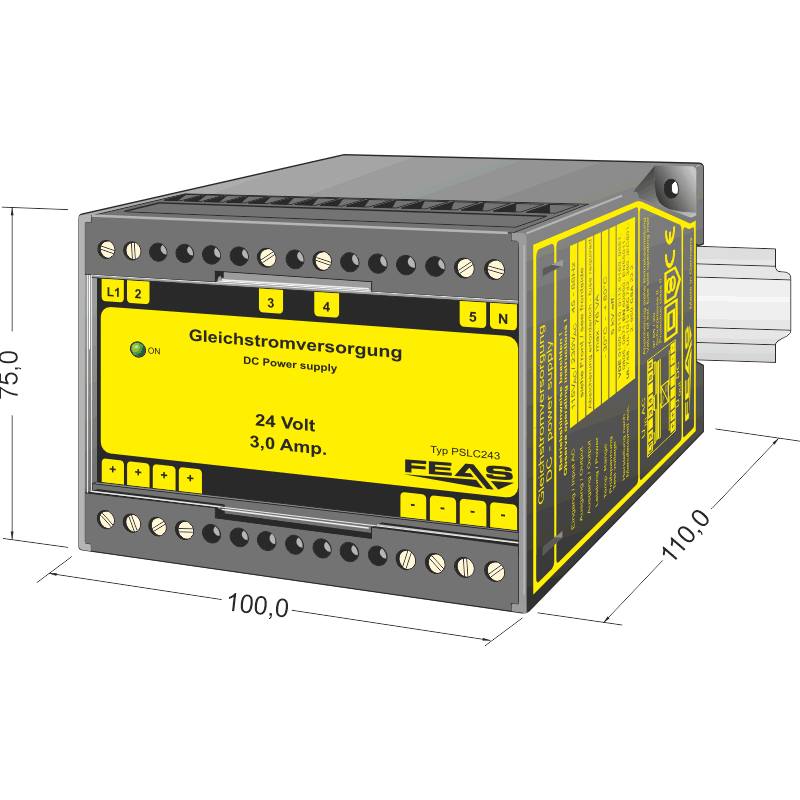

| Dimensions (WxHxD): | 100.0 x 75.0 x 110.0 mm |
| Weight: | 1.74 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Power supply PSLC243"
|
Data sheet PSLC3 (320,1 KB) Technical data for power supplies of the PSLC3-series |
Öffnen/Herunterladen | |
|
Manual PSLC3 (198,3 KB) Operating instructions for power supplies of the PSLC3 series |
Öffnen/Herunterladen | |
|
Product specification PSLC243 (213,3 KB) Further information about power supply PSLC243 |
Öffnen/Herunterladen |
