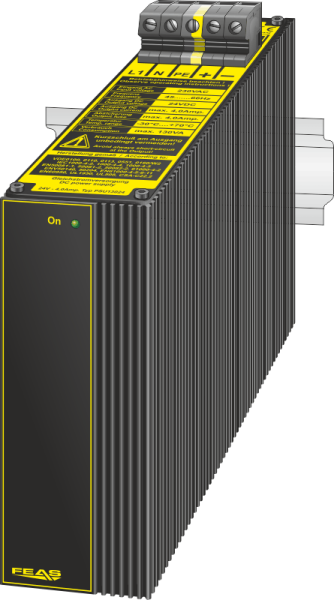

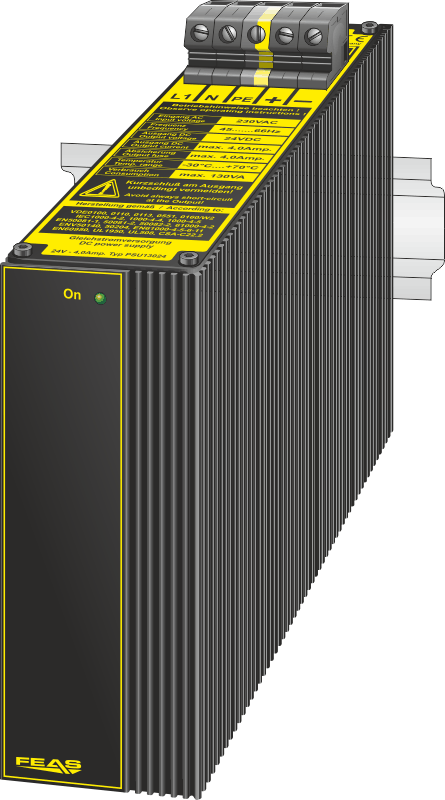

Power supply PSU13024-H
FEAS article number 585324
Price per unit:
€179.80 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €179.80 * | 0 % |
| From 3 | €176.20 * | 2 % |
| From 5 | €170.81 * | 5 % |
| From 10 | €167.21 * | 7 % |
| From 20 | €163.62 * | 9 % |
| From 50 | €161.82 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available upon request
The power supplies of the PSU130 series are powerful and robust devices to power electrical... more
Product information "Power supply PSU13024-H"
The power supplies of the PSU130 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminium housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminium housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PSU13024-H"
| Input voltage (VAC): | 230 VAC (45-66 Hz) |
| Output voltage: | 24 VDC |
| Output current: | 4.0 A |
| Power: | 96.0 W |
| Efficiency: | 90% |
| Residual ripple: | < 2% |
| Operating temperature range: | -30°C / +70°C |

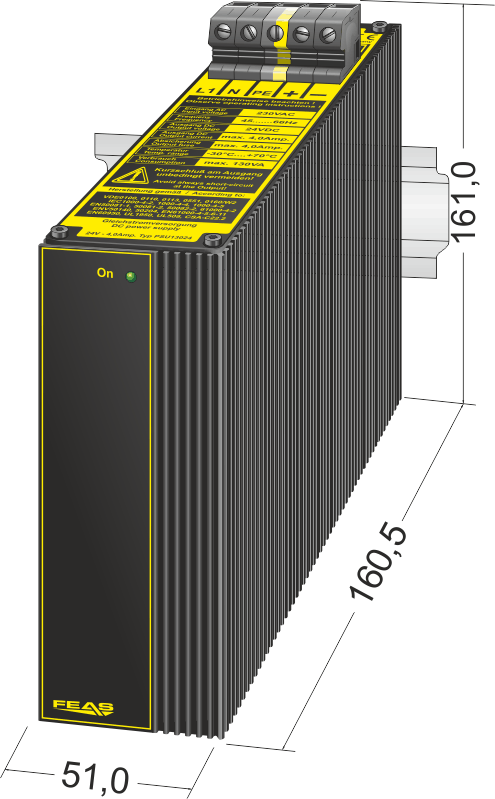

| Dimensions (WxHxD): | 51.0 x 161.0 x 160.5 mm |
| Weight: | 3.00 kg |
| Mounting: | On rails acc. to DIN 46277 |
Downloads "Power supply PSU13024-H"
|
Manual PSU130 (424,8 KB) Operating instructions for power supplies of the series PSU130 |
Öffnen/Herunterladen | |
|
Data sheet PSU130-H (155,9 KB) Technical data for power supply PSU130-H |
Öffnen/Herunterladen | |
|
Product specification PSU13024-H (184,0 KB) Further information about power supply PSU13024-H |
Öffnen/Herunterladen |
