Power supply PSU14024
FEAS article number 582653
Price per unit:
€196.30 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €196.30 * | 0 % |
| From 3 | €192.37 * | 2 % |
| From 5 | €186.49 * | 5 % |
| From 10 | €182.56 * | 7 % |
| From 20 | €178.63 * | 9 % |
| From 50 | €176.67 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The power supplies of the PSU140 series are powerful and robust devices to power electrical... more
Product information "Power supply PSU14024"
The power supplies of the PSU140 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or similar. Power supplies of this type are suitable as well for the most PLC-applications.
The uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, it is particularly suitable for being used in rough industrial environment. Furthermore it is quite insensitive to surge voltages.
The uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, it is particularly suitable for being used in rough industrial environment. Furthermore it is quite insensitive to surge voltages.
- Output separated according to VDE 0551
- Smoothed output
- Overload- and open circuit protected
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PSU14024"
| Input voltage (VAC): | 230 VAC (45-66 Hz) |
| Output voltage: | 24 VDC |
| Output current: | 5.0 A |
| Power: | 120.0 W |
| Efficiency: | 88% |
| Residual ripple: | < 3% |
| Operating temperature range: | -40°C / +70°C |

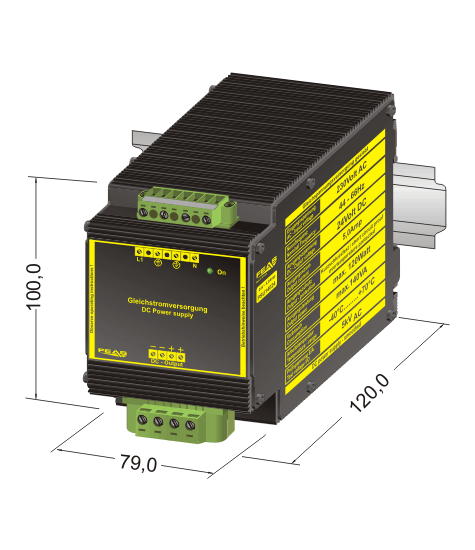

| Dimensions (WxHxD): | 79.0 x 100.0 x 120.0 mm |
| Weight: | 2.35 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Power supply PSU14024"
|
Data sheet PSU14024 (277,9 KB) Technical data for power supply PSU14024 |
Öffnen/Herunterladen | |
|
Manual PSU90 - PSU160 (820,7 KB) Operating instructions for power supplies of the series PSU90 / PS1U90, PSU100 / PS1U100 / PS2U100, PSU140 / PS1U140 / PS2U140, PSU160 / PS1U160 / PS2U160. |
Öffnen/Herunterladen | |
|
Product specification PSU14024 (501,5 KB) Further information about power supply PSU14024 |
Öffnen/Herunterladen |
