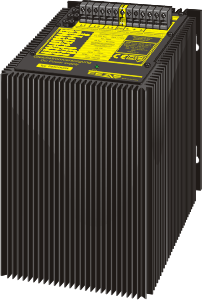

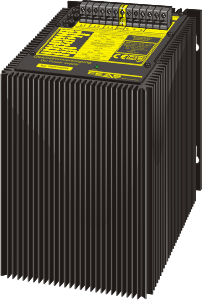

Power supply PS5U1K224
FEAS article number 582726
Price per unit:
€600.50 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €600.50 * | 0 % |
| From 3 | €588.49 * | 2 % |
| From 5 | €570.48 * | 5 % |
| From 10 | €558.47 * | 7 % |
| From 20 | €546.46 * | 9 % |
| From 50 | €540.45 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available upon request
The power supplies of the PS5U1K2 series are powerful and robust devices to power electrical... more
Product information "Power supply PS5U1K224"
The power supplies of the PS5U1K2 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- for 3 x 500VAC input voltage
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Operating status shown by LED
- Parallel connection possible
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PS5U1K224"
| Input voltage (VAC): | 3 x 500 VAC (45-66 Hz) |
| Output voltage: | 24 VDC |
| Output current: | 50.0 A |
| Power: | 1200.0 W |
| Efficiency: | 90% |
| Residual ripple: | < 2% |
| Operating temperature range: | -30°C / +70°C |

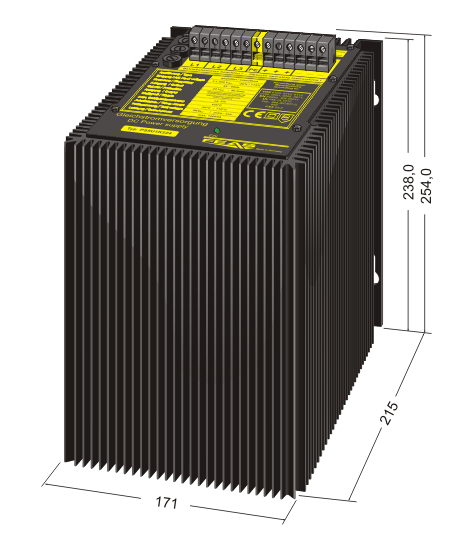

| Dimensions (WxHxD): | 171.0 x 254.0 x 215.0 mm |
| Weight: | 19.35 kg |
| Mounting: | wall mounting with screws |
Downloads "Power supply PS5U1K224"
|
Manual PSU 500T, 750, 1K2 (170,1 KB) Operating instructions for power supplies of the series PSU 500T, 750, 1K2 |
Öffnen/Herunterladen | |
|
Data sheet PS5U1K2 (213,6 KB) Technical data for power supply PS5U1K2 |
Öffnen/Herunterladen | |
|
Product specification PS5U1K224 (284,4 KB) Further information about power supply PS5U1K224 |
Öffnen/Herunterladen |
