| FEAS GmbH

Price per unit:

€319.20 *

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity	Unit price	Discount
To 2	€319.20 *	0 %
From 3	€312.82 *	2 %
From 5	€303.24 *	5 %
From 10	€296.86 *	7 %
From 20	€290.47 *	9 %
From 50	€287.28 *	10 %

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

available upon request

The power supplies of the PS5U500 series are powerful and robust devices to power electrical... more

Close menu

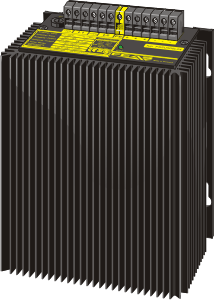

Product information "Power supply PS5U500L24"

The power supplies of the PS5U500 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.

for 500VAC input voltage
Output separated according to VDE 0551
Smoothed output
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Simple wall mounting with screws
Operating status shown by LED
Parallel connection possible
Suitable for the tropics - epoxy resin casted
Conforms to EMC and low voltage directive
Safety acc. to VDE, EN, UL, CSA

Technical data more

Close menu

Technical data "Power supply PS5U500L24"

Input voltage (VAC):	500 VAC (45-66 Hz)
Output voltage:	24 VDC
Output current:	15.0 A
Power:	360.0 W
Efficiency:	90%
Residual ripple:	< 2%
Operating temperature range:	-30°C / +70°C

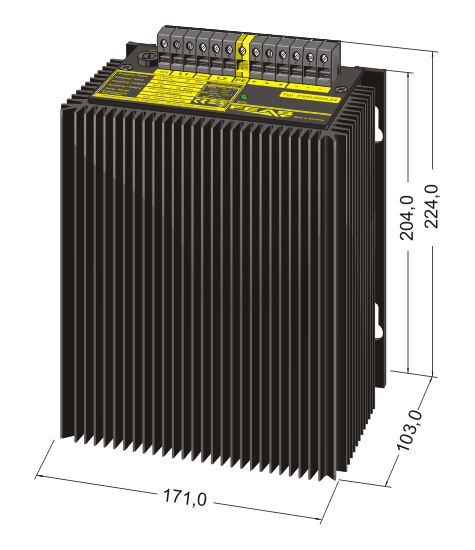

Dimensions (WxHxD):	171.0 x 224.0 x 103.0 mm
Weight:	8.10 kg
Mounting:	wall mounting with screws
