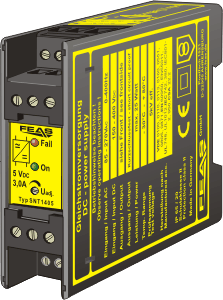

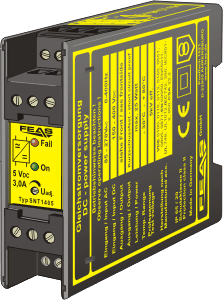

Switch mode power supply SNT1405
FEAS article number 586705
Price per unit:
€150.70 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €150.70 * | 0 % |
| From 3 | €147.69 * | 2 % |
| From 5 | €143.17 * | 5 % |
| From 10 | €140.15 * | 7 % |
| From 20 | €137.14 * | 9 % |
| From 50 | €135.63 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
The switch-mode power supplies of the SNT14 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT1405"
The switch-mode power supplies of the SNT14 series are powerful and robust devices to power sensitive loads in a rough industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this model can be adjusted. This power supply is optimally suited for loads requiring high starting currents.
- Switch-mode controller with low residual ripple
- Output adjustable
- Boost with 200%
- Operating status shown by LED
- Parallel connection possible
- Short circuit proof
- Overload- and open circuit protected
- Suitable for the tropics - epoxy resin casted
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 60950)
- Safety according to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT1405"
| Input voltage (VAC): | 85 - 270 VAC (0-400 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 5 VDC |
| Adjustment range: | 4.7 - 5.3 VDC |
| Output current: | 3.0 A |
| Power: | 15.0 W |
| Efficiency: | 72% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -40°C / +80°C |
| Dimensions (WxHxD): | 22.5 x 75.0 x 98.5 mm |
| Weight: | 0.3 kg |
| Mounting: | On rails acc. to DIN 46277 |
Downloads "Switch mode power supply SNT1405"
|
Data sheet SNT1405 (144,5 KB) Technical data for power supply SNT1405 |
Öffnen/Herunterladen | |
|
Product specification SNT1405 (470,1 KB) Further information about power supply SNT1405 |
Öffnen/Herunterladen | |
|
Manual SNT12 and SNT14 (242,5 KB) Operating instructions for power supplies of the series SNT12 and SNT14 |
