Transformer PST10012

FEAS article number 582648

Price per unit:
€133.00 *

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity Unit price Discount
To 2 €133.00 * 0 %
From 3 €130.34 * 2 %
From 5 €126.35 * 5 %
From 10 €123.69 * 7 %
From 20 €121.03 * 9 %
From 50 €119.70 * 10 %

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock
The Safety isolating transformer of the PST100 series are powerful and robust transformers to... more
Product information "Transformer PST10012"
The Safety isolating transformer of the PST100 series are powerful and robust transformers to power devices with low alternating input voltage. The PST10012 transforms AC line voltage into short circuit proof 12V -output voltage, suited for AC the consumer. The input voltage can be 115V or 230V. Due to the uncomplex circuit arrangement the device shows a long life span and a high degree of efficiency (>80%). Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding.
  • Output separated according to VDE 0551
  • Extra low safety potential PELV (EN 60204), SELV (EN 60950)
  • Overload- and open circuit protected
  • Short circuit proof
  • Parallel connection possible
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL, CSA
Technical data more
Technical data "Transformer PST10012"
Input voltage (VDC): 115 VAC / 230 VAC (45-66 Hz)
Output voltage (VDC): 12 VAC
Output current: 8.0 Amp.
Power at cos ϑ = 1.0: 105 VA
Power at cos ϑ = 0.5: 210 VA
Efficiency: 88 %
Operating temperature range: -40°C / +70°C
Dimensions (WxHxD): 64.0 x 100.0 x 120.0 mm
Weight: 2.00 kg
Mounting: On rails acc. to DIN 46277 or wall mounting with screws
Downloads "Transformer PST10012"

Product specification PST10012 (219,4 KB)

Further information about transformer PST10012

Öffnen/Herunterladen

Manual PST100 (1,4 MB)

Operating instructions for transformer series PST100

Öffnen/Herunterladen

Data sheet PST10012 (375,7 KB)

Technical data for Transformer PST10012

Öffnen/Herunterladen

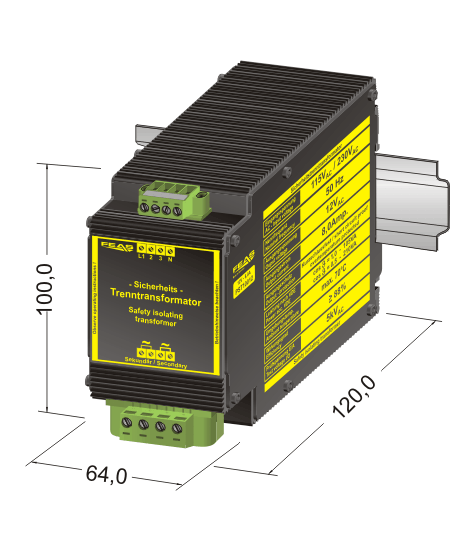

Dimensions "Transformer PST10012"
Dimensions Transformer PST10012
